Morris 91738 U-Bolt Ground Clamp, 1-Conductor, 1" Pipe, 250 MCM - 2/0 AWG
Morris 91738 U-Bolt Ground Clamp, 1-Conductor, 1" Pipe, 250 MCM - 2/0 AWG
Regular price
$33.43
Regular price
Sale price
$33.43
SKU:91738
Quantity
Couldn't load pickup availability

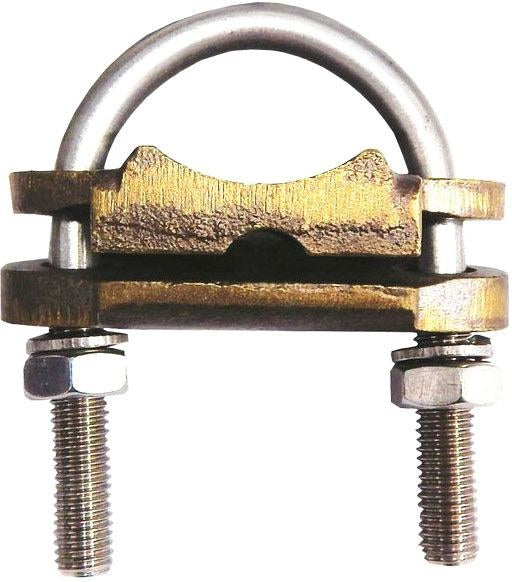

Morris's 91738 is a UL467 copper U-bolt ground clamp that connects one 250 MCM - 2/0 AWG ground wire parallel or 90 degrees to 1" water pipe, copper tubing, a ground rod, rebar, or fencing. It is cast from high-strength, high-conductivity copper alloy with stainless steel bolts, nuts, and lock washers.
Key Features
- U-Bolt Style Clamp
- Connects 1 Ground Wire Parallel or 90 Degrees to Water Pipe, Copper Tubing, Ground Rod, Rebar, or Fencing
- Cast of High-Strength, High-Conductivity Copper Alloy
- Stainless Steel Bolts, Nuts, and Lock Washers
- UL467 Listed for Direct Burial in Soil or Concrete
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 91738 |
| Type | Copper U-Bolt Ground Clamp |
| Conductors | 1 |
| Pipe Size | 1" |
| Wire Range | 250 MCM - 2/0 AWG |
| Material | Copper Alloy |
| Hardware | Stainless Steel |
| Listing | UL467 Direct Burial |
Applications
Used to bond one 250 MCM - 2/0 AWG ground conductor to 1" pipe, ground rod, rebar, or fencing in direct-buried grounding-electrode systems.
Installation
Set the U-bolt around the pipe or rod, seat the conductor, and tighten the nuts to clamp both.
