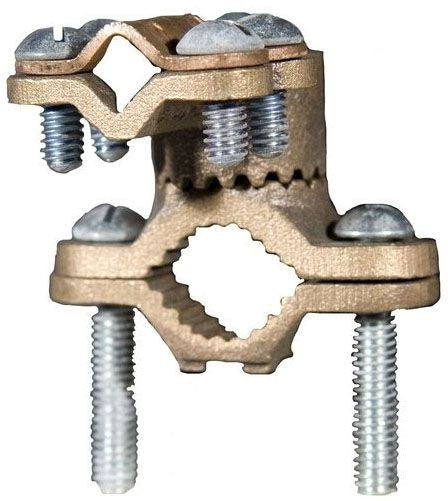

Morris 91696 Serrated-Collar Cable-Adaptor Ground Clamp, 4-1/2" - 6" Pipe

Product Overview

The Morris 91696 is a copper alloy serrated-collar cable-adaptor ground clamp designed to bond #8 through 4/0 armored cable or ground wire to 4-1/2"–6" water pipe, copper tubing, or a ground rod.

The adaptor and serrated collar rotate 360° to simplify alignment; the body is cast from a high-conductivity copper alloy and uses zinc-plated steel set screws.

Key Features

• Bonds #8–4/0 AWG armored cable or ground wire to 4-1/2"–6" pipe, copper tubing, or ground rod
• Serrated collar and adaptor swing 360° for easy alignment
• Cast from high-strength, high-conductivity copper alloy
• Zinc-plated steel set screws for corrosion resistance

What this clamp does

The Morris 91696 provides a durable electrical bond between armored cable or a separate grounding conductor and a pipe or ground rod. It secures the conductor while creating a conductive path to the pipe or rod.

• Intended for bonding applications where a mechanical and electrical connection to pipe or ground rod is required
• Accepts either armored cable or individual ground wire within the stated wire range

Pipe and wire compatibility

Confirm compatibility by matching the clamp's documented pipe and wire ranges to your materials before ordering.

• Pipe range: 4-1/2" – 6" diameter
• Wire range: #8 AWG up to 4/0 AWG (armored cable or ground wire)

Installation and alignment

The clamp is designed for straightforward mechanical installation. The serrated collar and adaptor rotate through 360 degrees to aid alignment of the conductor relative to the pipe or rod.

• Place the clamp around the pipe or rod
• Rotate the serrated adaptor to the needed position
• Insert the cable or ground wire and tighten the set screws to secure the connection

Materials and corrosion resistance

The clamp body is cast from a high-strength, high-conductivity copper alloy to maintain electrical conductivity. Set screws are zinc-plated steel to provide improved corrosion resistance compared with plain steel fasteners.

• Body: copper alloy (high-conductivity casting)
• Set screws: zinc-plated steel

Before You Order

Confirm the model number and the pipe diameter and conductor sizes required for your installation before ordering.

• Verify pipe diameter falls within 4-1/2"–6"
• Verify conductor (armored cable or ground wire) is within #8–4/0 AWG
• If unsure about code or application requirements, consult a qualified electrician

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Morris 91696 Serrated-Collar Cable-Adaptor Ground Clamp, 4-1/2" - 6" Pipe. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
