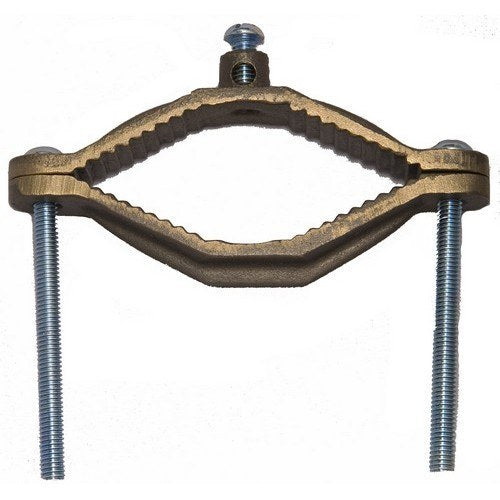

Morris 91664 Serrated-Collar Ground Pipe Clamp, 2-1/2" - 4" Pipe
Morris 91664 Serrated-Collar Ground Pipe Clamp, 2-1/2" - 4" Pipe
Regular price
$34.61
Regular price
Sale price
$34.61
SKU:91664
Quantity
Couldn't load pickup availability
Morris's 91664 is a copper serrated-collar ground pipe clamp for bonding #2 to #10 conductors to 2-1/2" - 4" water pipe, copper tubing, or a ground rod. The serrated collar accepts Morris serrated adaptors 91603-91606 for armored-cable or conduit grounding, and it is cast from high-strength, high-conductivity copper alloy with zinc-plated steel set screws.
Key Features
- For Water Pipe, Copper Tubing, or Ground Rod
- Serrated Collar Accepts Adaptors 91603-91606 for Field Flexibility
- Cast of High-Strength, High-Conductivity Copper Alloy
- Zinc-Plated Steel Set Screws for Corrosion Resistance
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 91664 |
| Type | Copper Ground Pipe Clamp - Serrated Collar |
| Pipe Range | 2-1/2" - 4" |
| Wire Range | #2 - #10 AWG |
| Material | Copper Alloy |
| Set Screw | Zinc-Plated Steel |
| Pairs With | Serrated Adaptors 91603-91606 |
Applications
Used to ground #2-#10 conductors to 2-1/2" - 4" water pipe or copper tubing, with optional serrated adaptors for conduit or armored-cable grounding.
Installation
Place the clamp around the pipe, insert the conductor (or a serrated adaptor) and tighten the set screw.
