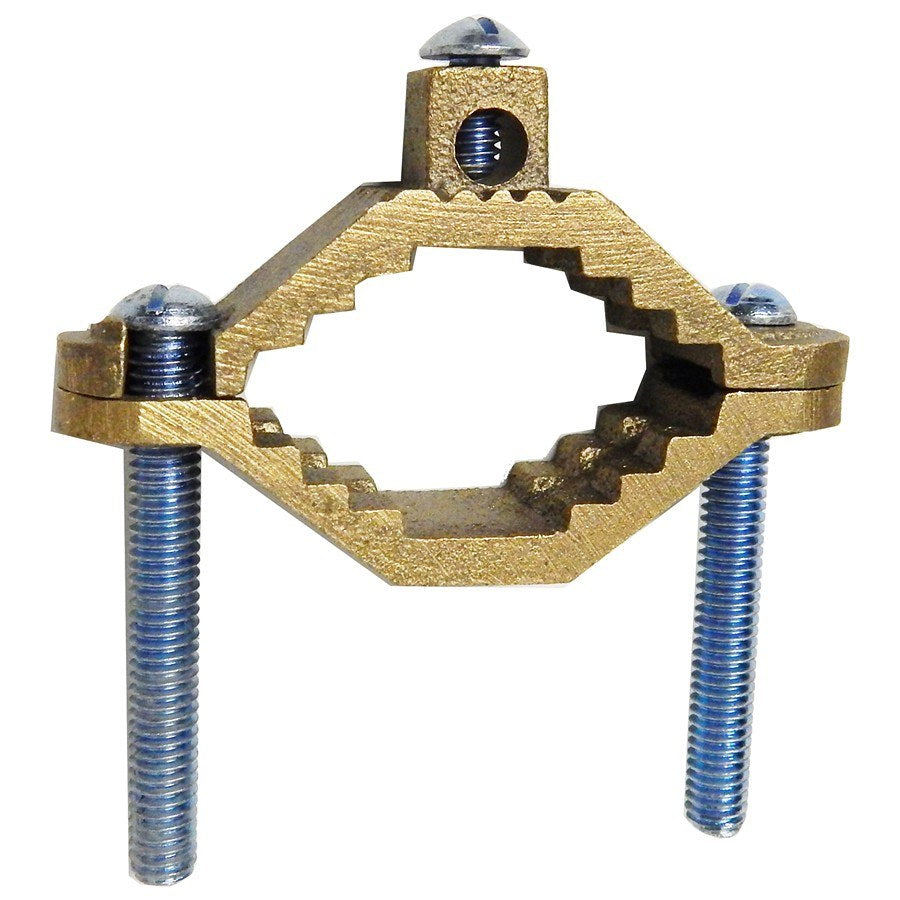

Morris 91662 Serrated-Collar Ground Pipe Clamp, 1-1/4" - 2" Pipe

Product Overview

The Morris 91662 is a copper-alloy serrated-collar ground pipe clamp sized to bond #2 to #10 AWG conductors to 1-1/4"–2" water pipe, copper tubing, or a ground rod.

The serrated collar accepts Morris serrated adaptors (91603–91606). The clamp body is cast from copper alloy and uses zinc-plated steel set screws.

Key Features

• Bonds #2–#10 AWG conductors to 1-1/4"–2" pipe, tubing, or ground rod
• Serrated collar accepts Morris adaptors 91603–91606
• Cast copper-alloy body
• Zinc-plated steel set screws

What this clamp does

The Morris 91662 provides an electrical bond between a grounding conductor and metallic pipe or a ground rod. It is sized to attach #2–#10 AWG conductors to pipes with an outside diameter range of 1-1/4" to 2".

• Primary function: grounding/bonding to water pipe, copper tubing, or ground rod
• Wire range: #2 through #10 AWG

Compatibility

This clamp fits pipes with a nominal range of 1-1/4" to 2" and accepts conductors from #2 to #10 AWG. The serrated collar is designed to accept Morris serrated adaptors catalog numbers 91603 through 91606.

• Pipe range: 1-1/4"–2"
• Pairs with serrated adaptors: 91603, 91604, 91605, 91606

Materials

The clamp body is cast from copper alloy. Set screws are zinc-plated steel.

• Body: copper alloy (cast)
• Set screws: zinc-plated steel

Installation notes

The clamp is placed around the pipe and the conductor or a serrated adaptor is inserted into the collar before tightening the set screw. Follow applicable local electrical and grounding codes and use appropriate tools when installing.

• Place clamp around pipe or ground rod
• Insert conductor or serrated adaptor into collar
• Tighten set screw to secure connection

Before You Order

Confirm the model number and that pipe outside diameter and conductor size match your requirements before ordering.

• Verify the pipe OD falls within 1-1/4"–2"
• Confirm conductor size is within #2–#10 AWG
• Order serrated adaptor separately if required (91603–91606)
