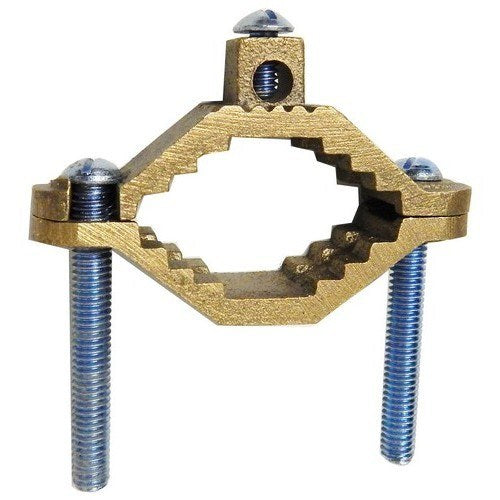

Morris 91660 Serrated-Collar Ground Pipe Clamp, 1/2" - 1" Pipe

Product Overview

The Morris 91660 is a copper-alloy ground pipe clamp with a serrated collar designed to bond #2 through #10 AWG conductors to 1/2"–1" water pipe, copper tubing, or a ground rod.

The serrated collar accepts Morris serrated adaptors (91603–91606) for grounding armored cable or conduit. Set screws are zinc-plated steel for improved corrosion resistance.

Key Features

• For bonding #2–#10 AWG conductors to 1/2"–1" pipe, copper tubing, or ground rod
• Serrated collar accepts Morris adaptors 91603–91606 for conduit or armored-cable grounding
• Cast from high-strength, high-conductivity copper alloy
• Zinc-plated steel set screws for corrosion resistance

What this clamp does

The Morris 91660 provides a secure electrical bond between grounding conductors and metallic piping or a ground rod. It is intended for use where reliable mechanical and electrical contact to a water pipe, copper tubing, or ground rod is required.

• Bonds conductors sized #2 through #10 AWG to pipe or rod
• Serrated collar ensures positive contact and accepts specific adaptors for alternate conductor types

Compatibility and adaptors

Use this clamp with 1/2" to 1" nominal pipe or copper tubing. The serrated collar is compatible with Morris serrated adaptors catalog numbers 91603 through 91606 to connect armored cable or conduit when needed.

• Pipe range: 1/2"–1"
• Wire range: #2–#10 AWG
• Pairs with Morris serrated adaptors 91603–91606 (adaptors sold separately)

Materials and corrosion resistance

The clamp body is cast from a high-strength, high-conductivity copper alloy to provide low-resistance grounding paths. Set screws are zinc-plated steel to resist corrosion in typical electrical grounding installations.

• Clamp material: copper alloy (cast)
• Set screw finish: zinc-plated steel

Installation overview

Installation is straightforward: place the clamp around the pipe, insert the conductor or a serrated adaptor into the collar, and tighten the set screw to secure the connection. Tightening should produce firm mechanical and electrical contact without damaging the conductor.

• Place clamp around pipe or rod within the specified pipe range
• Insert conductor (#2–#10 AWG) or a compatible serrated adaptor
• Tighten set screw(s) to achieve secure connection

Before You Order

Confirm the model number and that the pipe diameter and conductor size match the clamp's specified ranges before ordering.

• Verify pipe or tubing is within 1/2"–1" nominal diameter
• Confirm conductor size is between #2 and #10 AWG
• If grounding armored cable or conduit, order the appropriate serrated adaptor (91603–91606) separately
