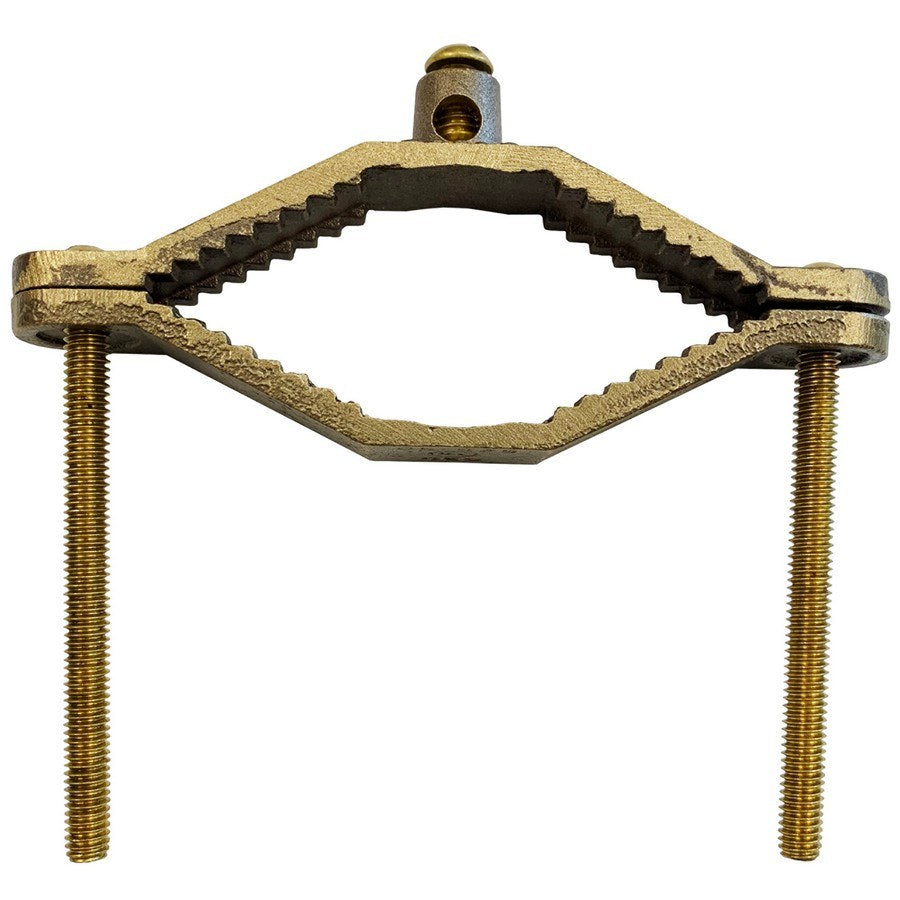

Morris 90622 Copper Ground Pipe Clamp, 4-1/2" - 6" Pipe, Direct Burial
SKU: 90622
Price:
$68.89
10% Off First Order
|
Min. Spend 200$
Description
Morris's 90622 is a UL467 direct-burial copper ground pipe clamp for bonding a grounding conductor to 4-1/2" - 6" water pipe in soil or concrete. It is cast from high-strength, high-conductivity copper alloy with copper screws and accepts #2 to #10 conductors.
Key Features
- UL467 Listed for Direct Burial in Soil or Concrete
- For Bonding a Grounding Conductor to Water Pipe
- Cast of High-Strength, High-Conductivity Copper Alloy
- Copper Screws
- Commonly Used for Swimming Pools/Spas, Commercial, and Industrial Grounding
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 90622 |
| Type | Copper Ground Pipe Clamp - Direct Burial |
| Water Pipe Range | 4-1/2" - 6" |
| Wire Range | #2 - #10 AWG |
| Material | Copper Alloy |
| Screws | Copper |
| Listing | UL467 Direct Burial |
Applications
Used for direct-buried grounding to 4-1/2" - 6" water pipe in soil or concrete, including swimming pool/spa, commercial, and industrial bonding.
Installation
Place the clamp around the buried pipe, insert the conductor, and tighten the screws; the connection is rated for direct burial in soil or concrete.
Specifics
