Morris

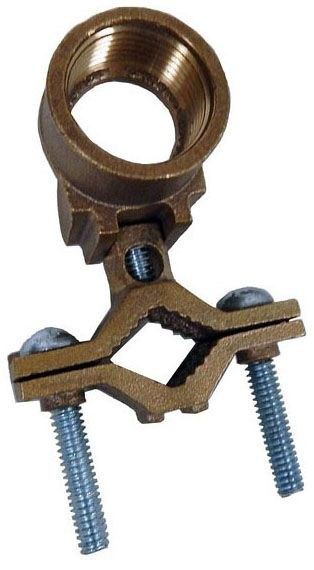

Morris 90603 Copper Ground Clamp, 1/2" - 1" Pipe, 1" Conduit Hub
Morris 90603 Copper Ground Clamp, 1/2" - 1" Pipe, 1" Conduit Hub
Regular price
$11.81
Regular price
Sale price
$11.81
SKU:90603
Quantity
Couldn't load pickup availability
Morris's 90603 is a copper ground clamp with a 1" rigid-conduit hub for bonding a grounding conductor in rigid conduit to 1/2" - 1" water pipe, ground rod, or copper-weld tubing. The hub swings 360° for easy alignment, it is cast from high-strength, high-conductivity copper alloy with zinc-plated steel set screws, and it accepts #2 to #10 conductors.
Key Features
- 1" Rigid-Conduit Hub with Standard Collar and Adaptor
- Hub Swings 360° for Easy Alignment
- For Connecting a Grounding Conductor in Rigid Conduit to Water Pipe, Ground Rod, or Copper-Weld Tubing
- Cast of High-Strength, High-Conductivity Copper Alloy
- Zinc-Plated Steel Set Screws
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 90603 |
| Type | Copper Ground Clamp - Rigid Conduit Hub |
| Water Pipe Range | 1/2" - 1" |
| Conduit Hub Size | 1" |
| Wire Range | #2 - #10 AWG |
| Material | Copper Alloy |
| Set Screw | Zinc-Plated Steel |
Applications
Used to bond a grounding conductor in 1" rigid conduit to 1/2" - 1" water pipe, ground rod, or copper-weld tubing.
Installation
Thread the conduit into the 360-degree hub, clamp the assembly to the pipe, insert the conductor, and tighten the set screws.
