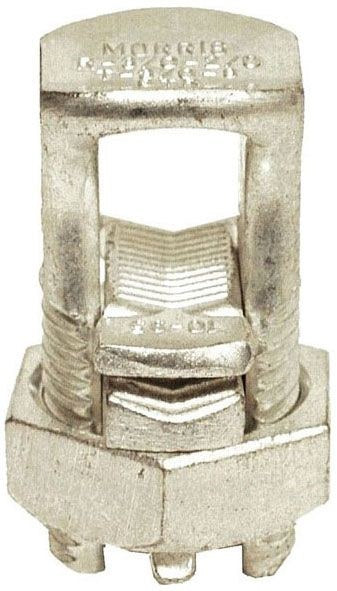

Morris 90366 Copper Split Bolt with Spacer, 500 MCM
Morris 90366 Copper Split Bolt with Spacer, 500 MCM
Regular price
$70.61
Regular price
Sale price
$70.61
SKU:90366
Quantity
Couldn't load pickup availability
Morris's 90366 is a copper split bolt with spacer for direct-burial splicing and tapping of copper and copper-weld stranded conductors across a 500 MCM - 2/0 AWG range. It is machined from copper, electro-tin plated, and UL467 listed for direct burial and grounding/bonding.
Key Features
- UL Listed for Copper and Copper-Weld Stranded Wires Only
- Manufactured from Copper
- Electro-Tin Plated
- Spacer Separates Dissimilar Conductors and Enhances Surface Contact
- Free-Turning Threads with Easy-Grip Wrench Flats
- Highly Resistant to Cracking and Corrosion
- UL467 Listed for Direct Burial & Grounding/Bonding
- Rated 600 Volts
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 90366 |
| Type | Copper Split Bolt with Spacer |
| Main Conductor | 500 MCM |
| Conductor Range | 500 MCM - 2/0 AWG |
| Material | Copper, Electro-Tin Plated |
| Spacer | Yes |
| Conductor Compatibility | Copper / Copper-Weld Stranded |
| Installation Torque | 825 in-lb |
| Voltage | 600V |
| Listing | UL467 |
| Direct Burial | Yes (Soil & Concrete) |
Applications
Used for copper-to-copper splice, tap, grounding, and bonding connections within the 500 MCM - 2/0 AWG range, including direct burial in soil and concrete.
Installation
Insert the run and tap conductors between the bolt and strap, seating the spacer between dissimilar conductors, then tighten the nut to 825 in-lb with a wrench.
