• Kuzco Architectural Lorna black [universal voltage and 0-10 dimming] interior/exterior wall sconce LD3-WS09W14-3036-BK-UNV-010
1 1

Kuzco Architectural

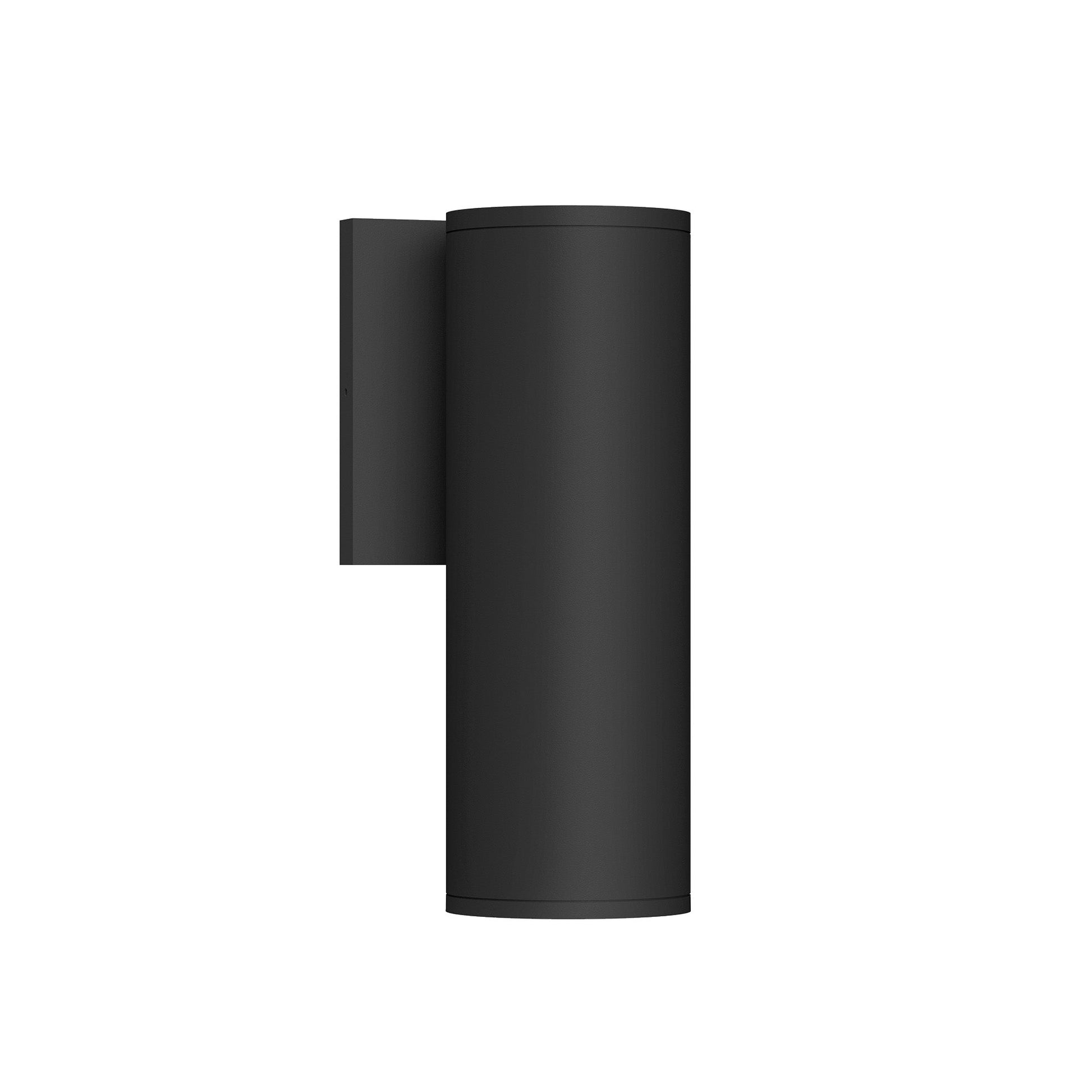

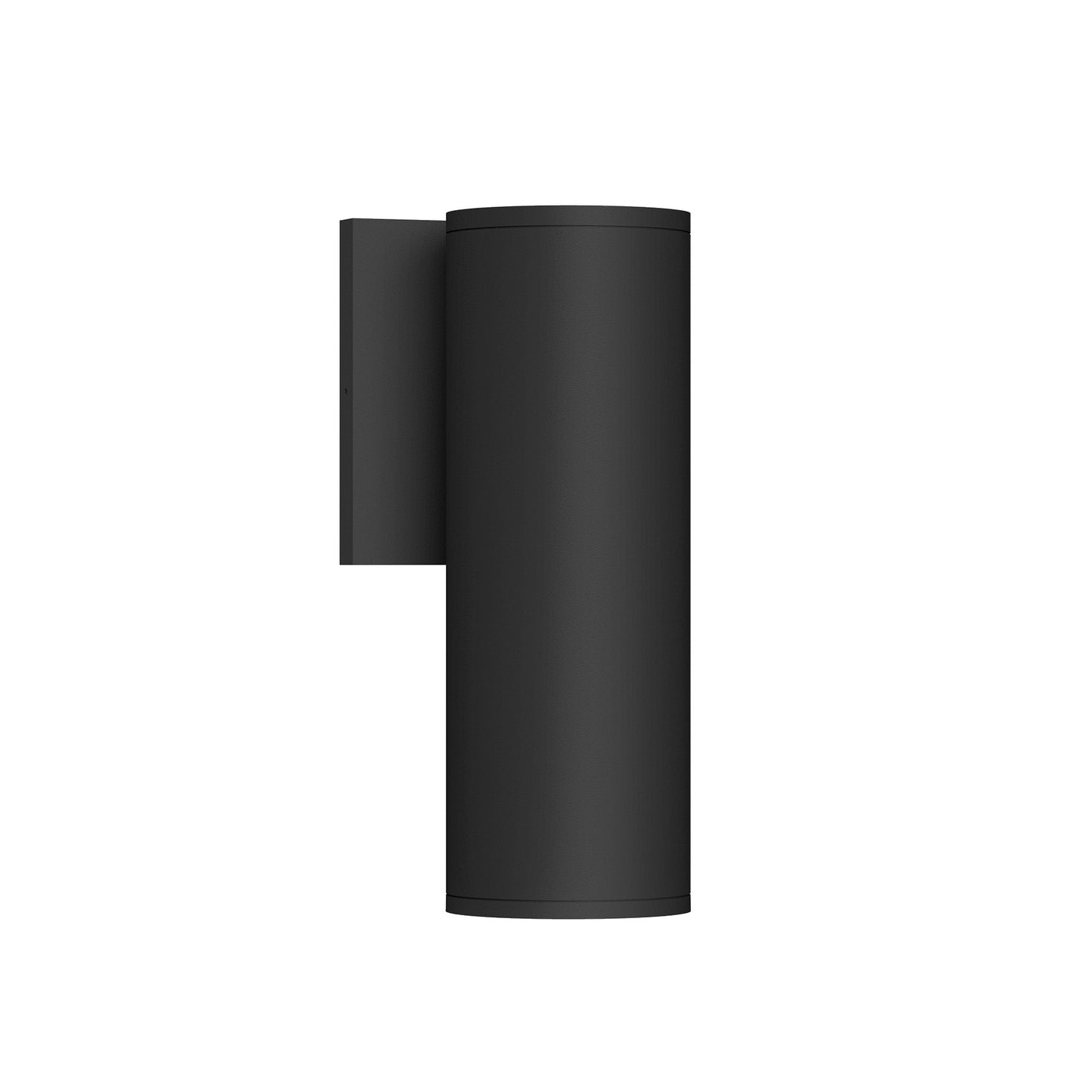

Kuzco Architectural Lorna LED Interior/Exterior Wall Sconce Black [Universal Voltage and 0-10 Dimming] LD3-WS09W14-3036-BK-UNV-010

Kuzco Architectural Lorna LED Interior/Exterior Wall Sconce Black [Universal Voltage and 0-10 Dimming] LD3-WS09W14-3036-BK-UNV-010

$234.00
$234.00
Sale Sold out

LD3-WS09W14-3036-BK-UNV-010
Request a Quote

The Kuzco Architectural Lorna LD3-WS09W14-3036-BK-UNV-010 is a 3000K LED interior/exterior wall sconce finished in black [universal voltage and 0-10 dimming]. Integrated LED draws 14W and produces 1470 lumens at 3000K with 90 CRI. The fixture carries a wet, ip65-location rating.

  • Integrated LED runs at 14W while producing 1470 lumens, removing bulb sourcing and relamping from the install.
  • TRIAC/ELV dimming to 10% output on a compatible wall dimmer, sold separately.
  • 90 CRI output renders wood, stone, and skin tones accurately in residential spaces.
  • ADA-compliant projection keeps the fixture within code for hallways and accessible spaces.
  • Wet, IP65-location rated, so it withstands wet exterior exposure.
  • California Title 24 JA8 compliant, so it qualifies for high-efficacy residential lighting.
Brand Kuzco Architectural
Model / SKU LD3-WS09W14-3036-BK-UNV-010
UPC 691759130836
Product Type LED Interior/Exterior Wall Sconce
Series Lorna
Primary Dimension 9-in (3-in Dia.)
Fixture Dimensions W4-5/8" x H9" x E3-7/8"
Canopy Dimensions W4-5/8" x H4-5/8" x E1/2"
Color Temperature 3000K
CRI 90
Total Lumens 1470 lm
Delivered Lumens 1292 lm
Wattage 14W
Input Voltage 120-277V
Dimming TRIAC/ELV Dimmer (Optional, Not Included) or 0-10V Dimmer (Optional, Not Included)
Dimming Range 100-10%
LED Life Span 50,000 hours
Mounting Style Outdoor-Down Only, can be mounted up for indoor application
Illumination Direction Single Direction
Material Aluminum + Glass
ADA Compliant Yes
Title 24 JA8 Yes, JA8-2022
Certification ETL
Country of Origin China
Finish Black [Universal Voltage and 0-10 Dimming]

Common applications include:

  • Living room and bedroom lighting
  • Entry and hallway lighting
  • Dining and gathering spaces

Pair with a triac/elv dimmer rated for the 14W load; the dimmer ships separately.

Lumera Electric stocks the Kuzco Architectural Lorna LD3-WS09W14-3036-BK-UNV-010 for residential lighting projects that call for a interior/exterior wall sconce in black [universal voltage and 0-10 dimming].
