• Kuzco Architectural Lorna black [universal voltage and 0-10 dimming] ceiling mount LD3-SM12W18-3036-BK-UNV-010
1 1

Kuzco Architectural

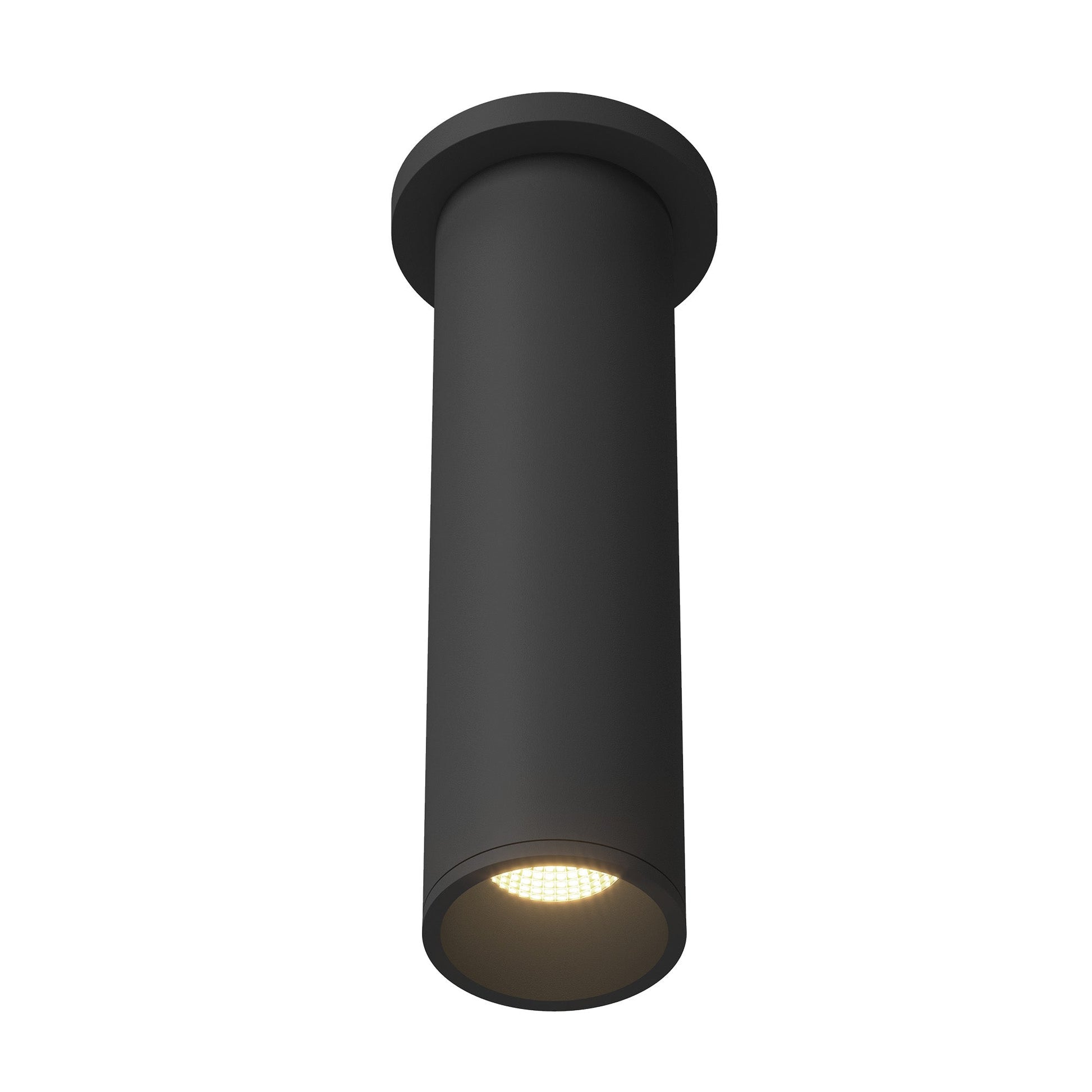

Kuzco Architectural Lorna LED Ceiling Mount Black [Universal Voltage and 0-10 Dimming] LD3-SM12W18-3036-BK-UNV-010

Kuzco Architectural Lorna LED Ceiling Mount Black [Universal Voltage and 0-10 Dimming] LD3-SM12W18-3036-BK-UNV-010

$270.00
$270.00
Sale Sold out

LD3-SM12W18-3036-BK-UNV-010
Request a Quote

The Kuzco Architectural Lorna LD3-SM12W18-3036-BK-UNV-010 is a 3000K LED ceiling mount finished in black [universal voltage and 0-10 dimming]. Integrated LED draws 18W and produces 1890 lumens at 3000K with 90 CRI. The fixture carries a damp-location rating.

  • Integrated LED runs at 18W while producing 1890 lumens, removing bulb sourcing and relamping from the install.
  • TRIAC/ELV dimming to 10% output on a compatible wall dimmer, sold separately.
  • 90 CRI output renders wood, stone, and skin tones accurately in residential spaces.
  • Damp-location rated, so it withstands bathroom and powder-room humidity.
  • California Title 24 JA8 compliant, so it qualifies for high-efficacy residential lighting.
Brand Kuzco Architectural
Model / SKU LD3-SM12W18-3036-BK-UNV-010
UPC 691759135152
Product Type LED Ceiling Mount
Series Lorna
Primary Dimension 12-in (3-in Dia.)
Fixture Dimensions D4-3/8" x H12"
Canopy Dimensions D4-3/8" x H1/2"
Color Temperature 3000K
CRI 90
Total Lumens 1890 lm
Delivered Lumens 1544 lm
Wattage 18W
Input Voltage 120-277V
Dimming TRIAC/ELV Dimmer (Optional, Not Included) or 0-10V Dimmer (Optional, Not Included)
Dimming Range 100-10%
LED Life Span 50,000 hours
Illumination Direction Down
Material Aluminum + Glass
Title 24 JA8 Yes, JA8-2022
Certification ETL
Country of Origin China
Finish Black [Universal Voltage and 0-10 Dimming]

Common applications include:

  • Bathroom and powder-room vanity lighting
  • Mirror-flanking sconce pairs
  • Hallway and entryway accent lighting

Pair with a triac/elv dimmer rated for the 18W load; the dimmer ships separately.

Lumera Electric stocks the Kuzco Architectural Lorna LD3-SM12W18-3036-BK-UNV-010 for bathroom and vanity projects that call for a ceiling mount in black [universal voltage and 0-10 dimming].
