• EnVision LED-UDL2-4FT-3P50-5CCT-WH LED Downlight
1 1

EnVision

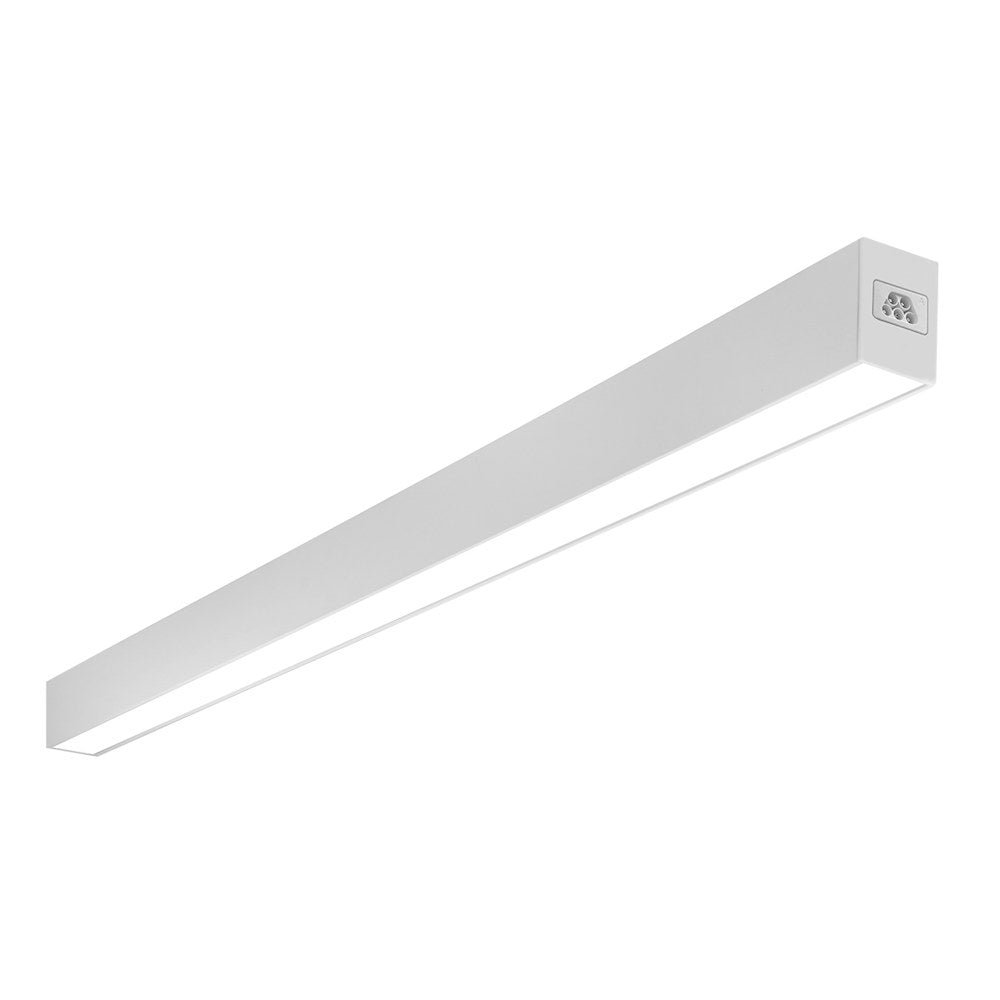

EnVision LED-UDL2-4FT-3P50-5CCT-WH – Suspended Linear

EnVision LED-UDL2-4FT-3P50-5CCT-WH – Suspended Linear

$120.40
$120.40
Sale Sold out

LED-UDL2-4FT-3P50-5CCT-WH
Request a Quote
Product Overview

Engineered for retail and office fit-outs, the EnVision LED-UDL2-4FT-3P50-5CCT-WH downlight provides up to 6,250 lumens with selectable 50/40/30w output across a 120-277V range, pairing verified performance with fast field specification.

Key Features
  • Selectable power: 50/40/30w set at install, one SKU covering multiple loads
  • Output: up to 6,250 lumens matching the selected wattage
  • Field-selectable color: 2700K-5000K (5 CCT) chosen on the fixture, no re-order
  • Dimming: 0-10V for smooth level control
  • Beam angle: 110° for even coverage
  • Color rendering: CRI >80
  • Rating: Damp Location IP40
  • Finish: White
  • Compliance: ETL Listed, 5-year warranty
Technical Specifications
Brand EnVision
Wattage 50/40/30w
Lumens 6,250/5,000/3,750
Color Temperature 2700K-5000K (5 CCT)
Voltage 120-277V
Dimming 0-10V
Beam Angle 110°
CRI >80
IP Rating Damp Location IP40
Finish White
Certification ETL/5 Years
UPC 810143711660
Applications

Suited to retail and office fit-outs, hospitality and residential ceilings, and corridors and common areas.

Compatibility & Installation Notes

Confirm the ceiling cutout or grid size matches the housing before ordering. Set the wattage and CCT switches before final mounting. Verify the location suits a damp-rated fixture.

Choose the LED-UDL2-4FT-3P50-5CCT-WH when a project needs dependable output with minimal spec overhead.
