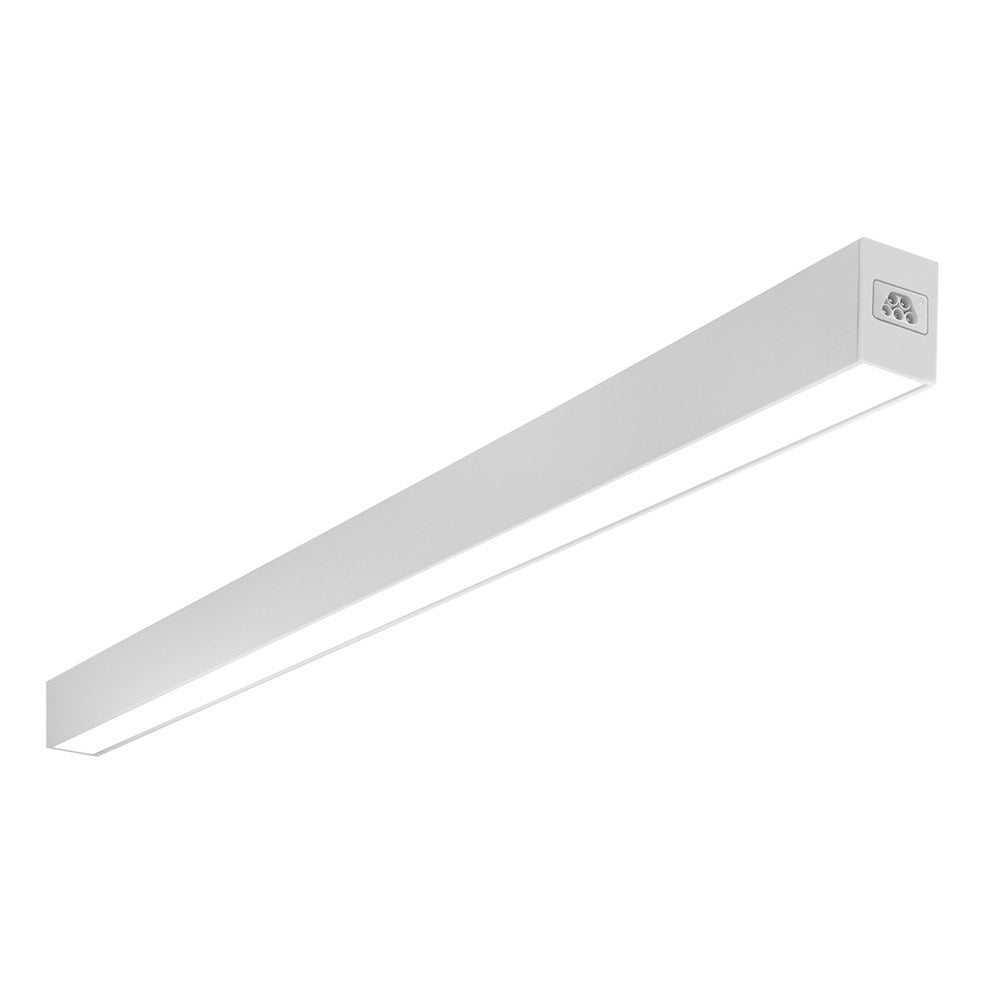

EnVision LED-UDL2-2FT-3P25-5CCT-WH – Suspended Linear
EnVision LED-UDL2-2FT-3P25-5CCT-WH – Suspended Linear
Regular price
$106.40
Regular price
Sale price
$106.40
SKU:LED-UDL2-2FT-3P25-5CCT-WH
Quantity
Couldn't load pickup availability
Product Overview
Applications
EnVision's LED-UDL2-2FT-3P25-5CCT-WH downlight supplies up to 3,125 lumens with selectable 25/20/15w output on universal 120-277V, suited to corridors and common areas with straightforward install and confirmation.
Key Features- Selectable power: 25/20/15w set at install, one SKU covering multiple loads
- Output: up to 3,125 lumens matching the selected wattage
- Field-selectable color: 2700K-5000K (5 CCT) chosen on the fixture, no re-order
- Dimming: 0-10V for smooth level control
- Beam angle: 110° for even coverage
- Color rendering: CRI >80
- Rating: Damp Location IP40
- Finish: White
- Compliance: ETL Listed, 5-year warranty
| Brand | EnVision |
|---|---|
| Wattage | 25/20/15w |
| Lumens | 3,125/2,500/1,875 |
| Color Temperature | 2700K-5000K (5 CCT) |
| Voltage | 120-277V |
| Dimming | 0-10V |
| Beam Angle | 110° |
| CRI | >80 |
| IP Rating | Damp Location IP40 |
| Finish | White |
| Certification | ETL/5 Years |
| UPC | 810143711646 |
Suited to corridors and common areas, recessed ceiling layouts, and retail and office fit-outs.
Compatibility & Installation NotesConfirm the ceiling cutout or grid size matches the housing before ordering. Set the wattage and CCT switches before final mounting. Verify the location suits a damp-rated fixture.
Order the LED-UDL2-2FT-3P25-5CCT-WH to standardize on one flexible fixture across the job.
