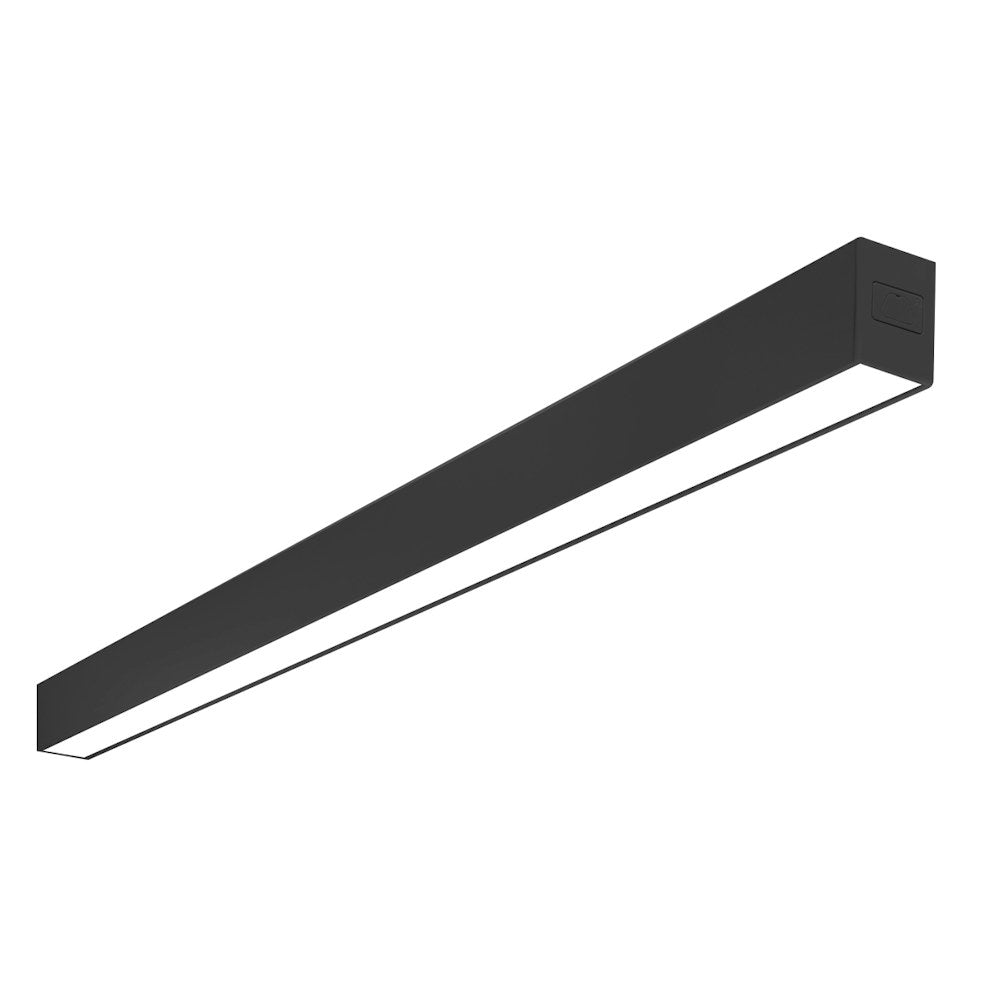

EnVision LED-UDL2-2FT-3P25-5CCT-BL – Suspended Linear

The EnVision LED-UDL2-2FT-3P25-5CCT-BL is a commercial-grade downlight delivering up to 3,125 lumens with selectable 25/20/15w output on 120-277V. Built for recessed ceiling layouts that demand dependable output and simple specification.

• Selectable power: 25/20/15w set at install, one SKU covering multiple loads
• Output: up to 3,125 lumens matching the selected wattage
• Field-selectable color: 2700K-5000K (5 CCT) chosen on the fixture, no re-order
• Dimming: 0-10V for smooth level control
• Beam angle: 110° for even coverage
• Color rendering: CRI >80
• Rating: Damp Location IP40
• Finish: Black
• Compliance: ETL Listed, 5-year warranty

Suited to recessed ceiling layouts, retail and office fit-outs, and hospitality and residential ceilings.

Confirm the ceiling cutout or grid size matches the housing before ordering. Set the wattage and CCT switches before final mounting. Verify the location suits a damp-rated fixture.

Specify the LED-UDL2-2FT-3P25-5CCT-BL where damp-rated performance is required from a single, code-listed fixture.
