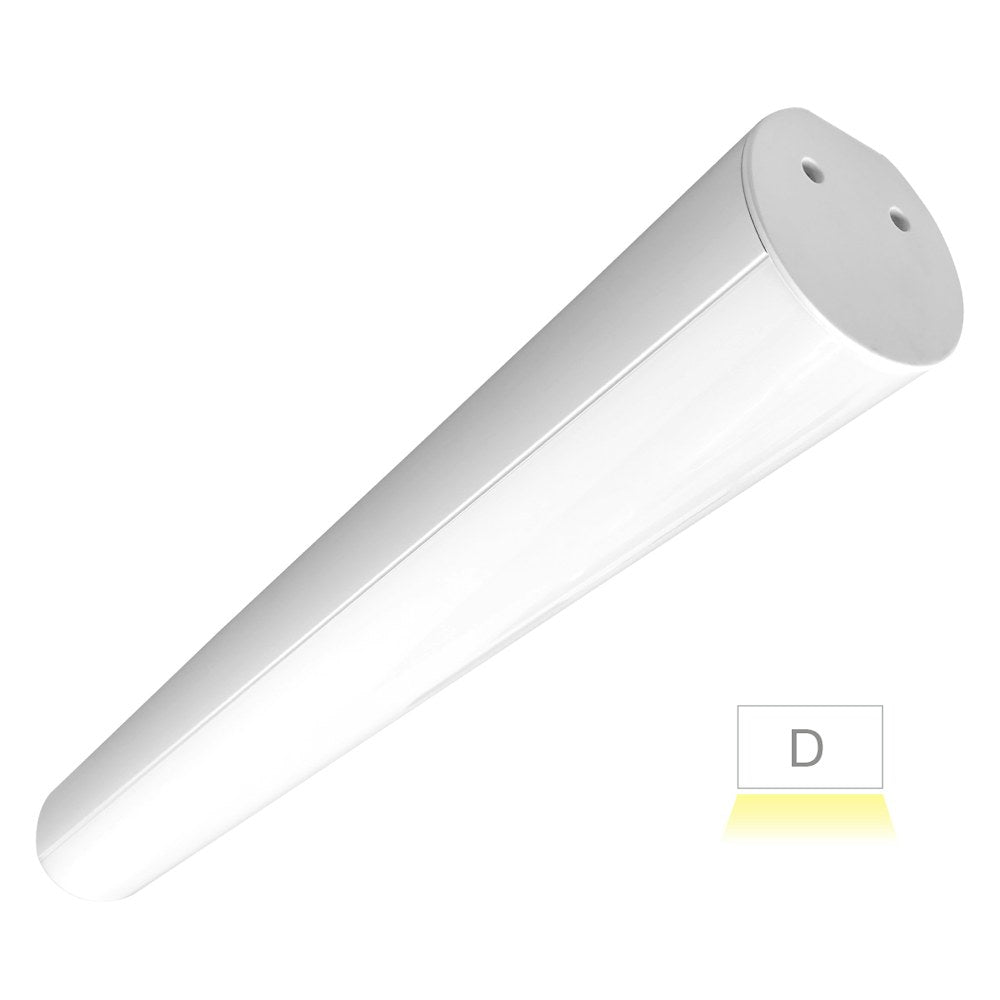

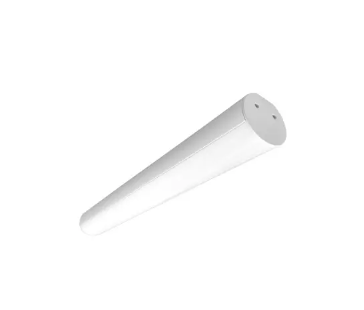

EnVision LED-TBL-2FT-20W-D-4CCT-WH – 2' Architectural Tubular Linear

Engineered for office and retail troffers, the EnVision LED-TBL-2FT-20W-D-4CCT-WH tube provides 2300 lumens across a 120-277V range, pairing verified performance with fast field specification.

• Wattage: 20w
• Output: 2300 lumens
• Field-selectable color: 3000K-5000K (4 CCT) chosen on the fixture, no re-order
• Dimming: 0-10V for smooth level control
• Beam angle: 110° for even coverage
• Color rendering: CRI >80
• Rating: Dry Location
• Finish: White
• Compliance: ETL Listed, 5-year warranty
• Packaged 12 per box

Suited to office and retail troffers, commercial ceiling upgrades, and general linear replacement.

Confirm ballast-bypass wiring and tombstone type before installation. Set the wattage and CCT switches before final mounting.

Choose the LED-TBL-2FT-20W-D-4CCT-WH when a project needs dependable output with minimal spec overhead.
