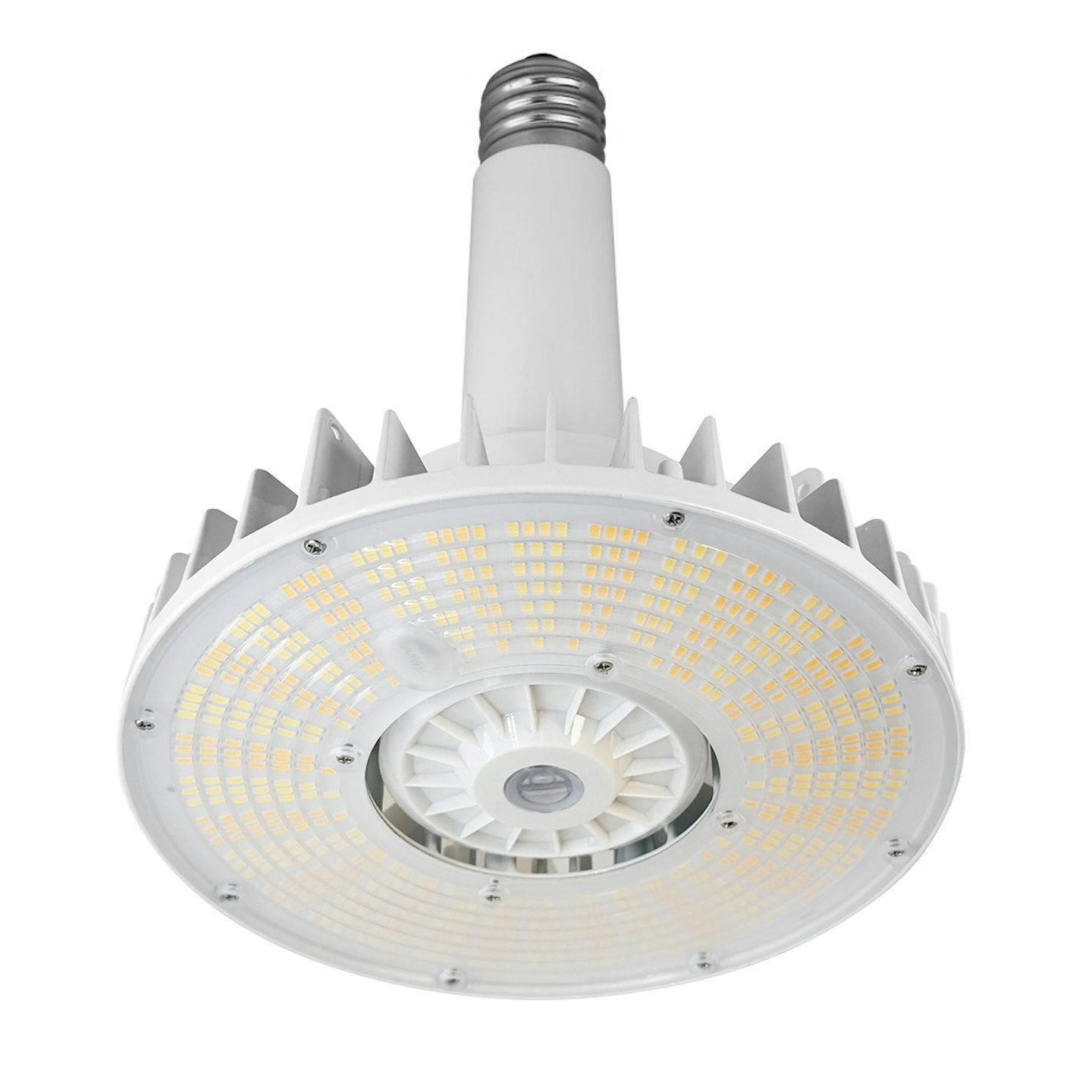

EnVision LED-RHBL-3P120-TRI-EX39 – High Bay Replacement Lamp 3CCT + 3 Power Select

EnVision LED-RHBL-3P120-TRI-EX39 – High Bay Replacement Lamp 3CCT + 3 Power Select

$91.00
$91.00
Sale Sold out

LED-RHBL-3P120-TRI-EX39
Request a Quote
Product Overview

Engineered for manufacturing floors, the EnVision LED-RHBL-3P120-TRI-EX39 high bay provides up to 19,200 lumens with selectable 120/100/80w output across a 120-277V range, pairing verified performance with fast field specification.

Key Features
  • Selectable power: 120/100/80w set at install, one SKU covering multiple loads
  • Output: up to 19,200 lumens matching the selected wattage
  • Field-selectable color: 3000K-5000K (3 CCT) chosen on the fixture, no re-order
  • Beam angle: 100° for even coverage
  • Color rendering: CRI >80
  • Rating: IP64 Damp Location
  • Finish: Clear
  • Compliance: UL/DLC Listed
  • Packaged 4 per box
Technical Specifications
Brand EnVision
Wattage 120/100/80w
Lumens 19,200/16,000/12,800
Color Temperature 3000K-5000K (3 CCT)
Voltage 120-277V
Beam Angle 100°
CRI >80
IP Rating IP64 Damp Location
Finish Clear
Certification UL/DLC
Box Quantity 4
UPC 810143715392
Applications

Suited to manufacturing floors, gymnasiums and big-box retail, and high-ceiling industrial bays.

Compatibility & Installation Notes

Confirm mounting height and required foot-candles for your ceiling before ordering. Set the wattage and CCT switches before final mounting. Verify the location suits a damp-rated fixture. DLC listing supports utility rebates—verify your program's current QPL.

Choose the LED-RHBL-3P120-TRI-EX39 when a project needs dependable output with minimal spec overhead.
