EnVision LED-CBT-2X2-5P40-5CCT – C-Line

EnVision LED-CBT-2X2-5P40-5CCT – C-Line

$67.20
$67.20
Sale Sold out

LED-CBT-2X2-5P40-5CCT
Request a Quote
Product Overview

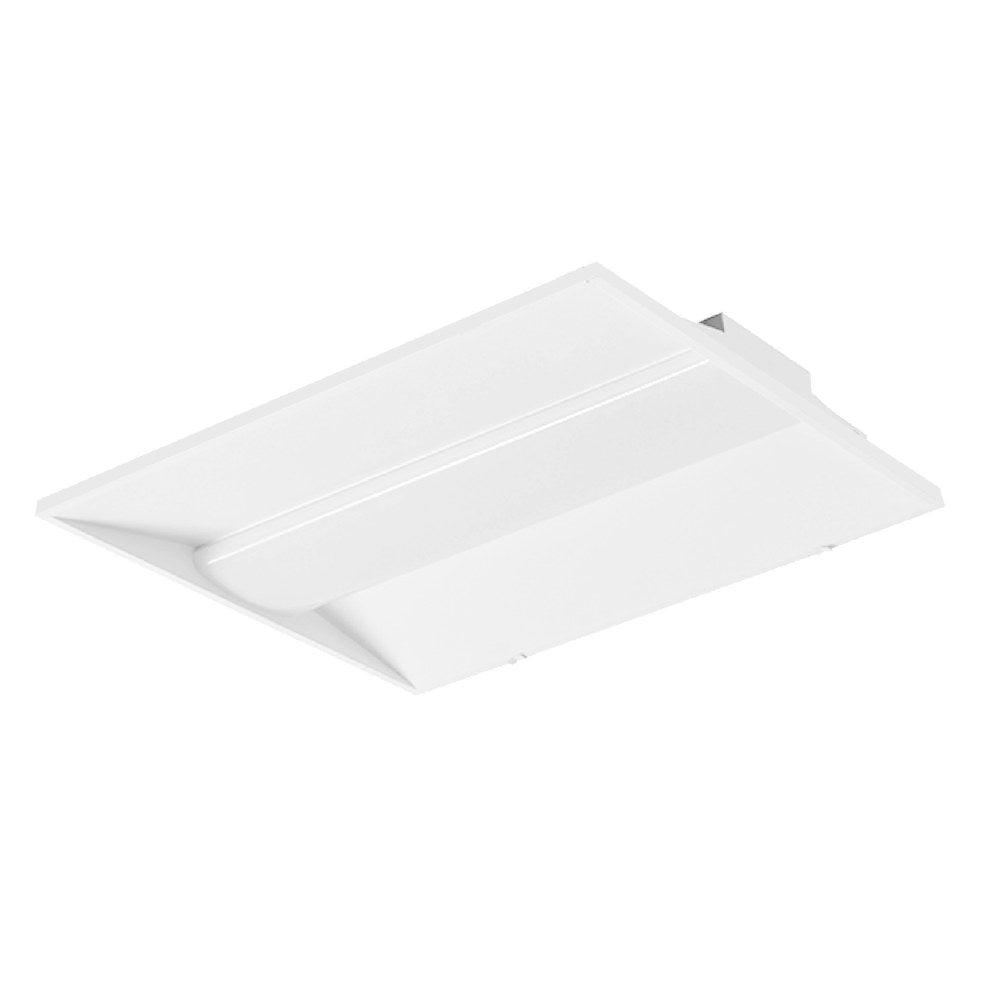

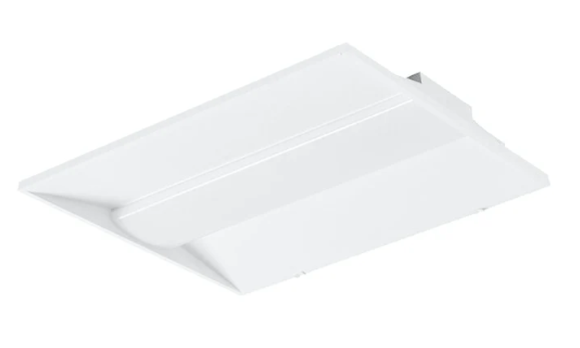

The EnVision LED-CBT-2X2-5P40-5CCT is a commercial-grade troffer delivering up to 5,000 lumens with selectable 40/35/30/25/20w output on 120-277V. Built for drop-ceiling office grids that demand dependable output and simple specification.

Key Features
  • Selectable power: 40/35/30/25/20w set at install, one SKU covering multiple loads
  • Output: up to 5,000 lumens matching the selected wattage
  • Field-selectable color: 3000K-5000K (4 CCT) chosen on the fixture, no re-order
  • Dimming: 0-10V for smooth level control
  • Beam angle: 110° for even coverage
  • Color rendering: CRI >80
  • Rating: Damp Location
  • Finish: White
  • Compliance: UL/DLC Listed, 5-year warranty
  • Packaged 2 per box
Technical Specifications
Brand EnVision
Wattage 40/35/30/25/20w
Lumens 5,000/4,375/3,750/3,125/2,500
Color Temperature 3000K-5000K (4 CCT)
Voltage 120-277V
Dimming 0-10V
Beam Angle 110°
CRI >80
IP Rating Damp Location
Finish White
Certification UL/ DLC / 5 Yrs
Box Quantity 2
UPC 810143712469
Applications

Suited to drop-ceiling office grids, education and healthcare, and commercial interiors.

Compatibility & Installation Notes

Confirm the ceiling cutout or grid size matches the housing before ordering. Set the wattage and CCT switches before final mounting. Verify the location suits a damp-rated fixture. DLC listing supports utility rebates—verify your program's current QPL.

Specify the LED-CBT-2X2-5P40-5CCT where damp-rated performance is required from a single, code-listed fixture.
