EnVision LED-BPL-4ix4ft-3M40-6CCT – Backlit-Line

EnVision LED-BPL-4ix4ft-3M40-6CCT – Backlit-Line

$65.80
$65.80
Sale Sold out

LED-BPL-4ix4ft-3M40-6CCT
Request a Quote
Product Overview

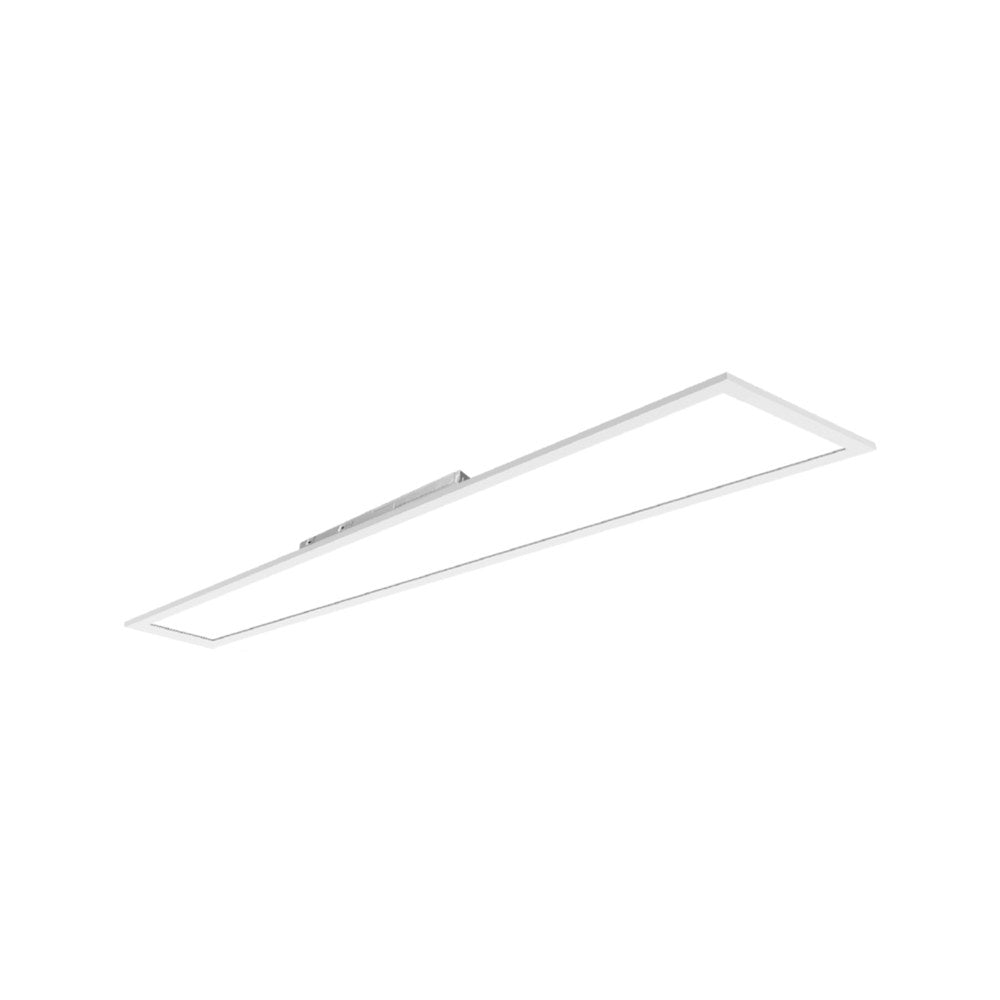

The EnVision LED-BPL-4ix4ft-3M40-6CCT is a panel rated for up to 4,400 lumens with selectable 40/30/20w output, operating on 120-277V. A dependable choice for retail and commercial interiors where consistent light and clean specs matter.

Key Features
  • Selectable power: 40/30/20w set at install, one SKU covering multiple loads
  • Output: up to 4,400 lumens matching the selected wattage
  • Field-selectable color: 2700K-6500K (6 CCT) chosen on the fixture, no re-order
  • Dimming: 0-10V for smooth level control
  • Beam angle: 110° for even coverage
  • Color rendering: CRI >80
  • Rating: Damp Location
  • Finish: White
  • Compliance: UL/DLC Listed, 5-year warranty
  • Packaged 6 per box
Technical Specifications
Brand EnVision
Wattage 40/30/20w
Lumens 4,400/3,500/2,500
Color Temperature 2700K-6500K (6 CCT)
Voltage 120-277V
Dimming 0-10V
Beam Angle 110°
CRI >80
IP Rating Damp Location
Finish White
Certification UL/DLC/ 5 Years
Box Quantity 6
UPC 810143713565
Applications

Suited to retail and commercial interiors, suspended-grid layouts, and drop-ceiling office grids.

Compatibility & Installation Notes

Confirm the ceiling cutout or grid size matches the housing before ordering. Set the wattage and CCT switches before final mounting. Verify the location suits a damp-rated fixture. DLC listing supports utility rebates—verify your program's current QPL.

The LED-BPL-4ix4ft-3M40-6CCT is a practical pick for installers who want verified specs and fast sourcing.
