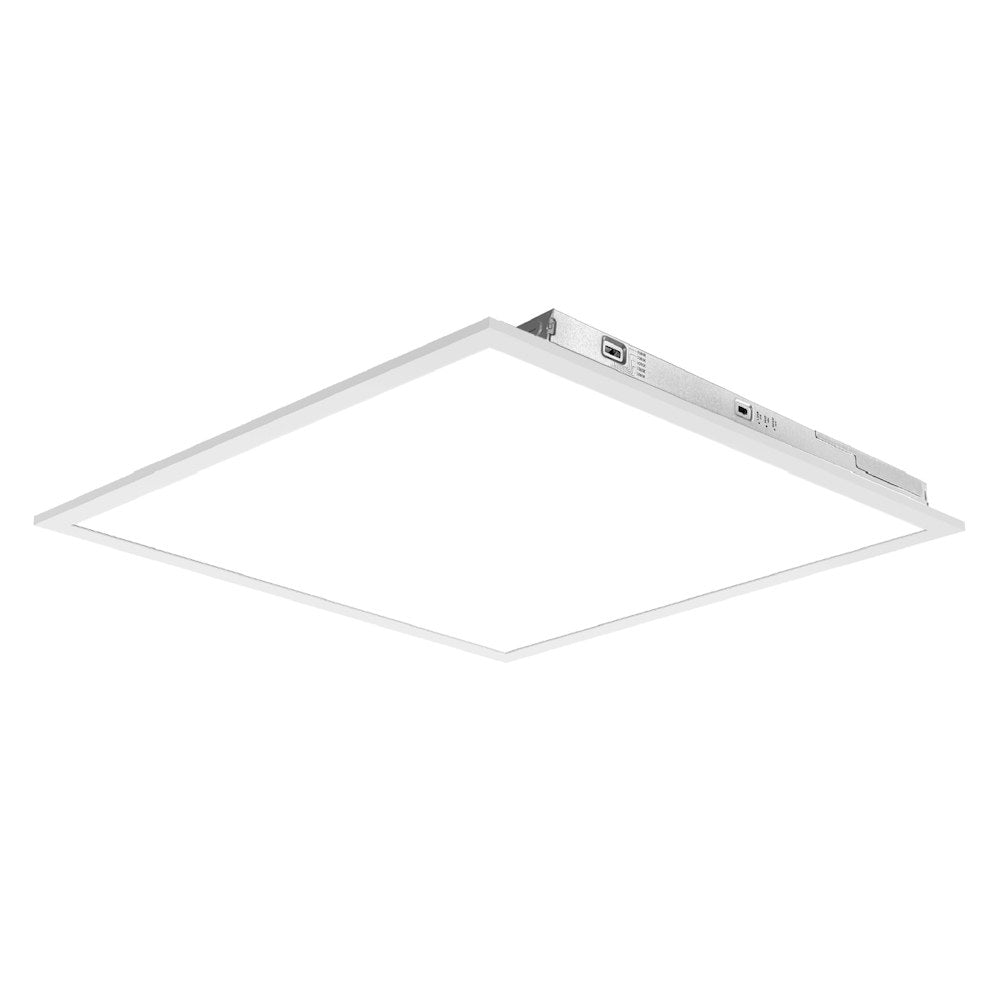

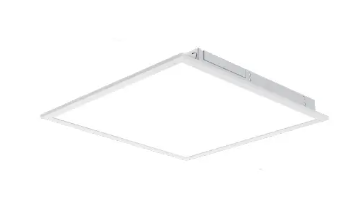

• EnVision LED-BPL-2x2-3M40-5CCT-EMB LED Panel
1 1

EnVision

EnVision LED-BPL-2x2-3M40-5CCT-EMB – Backlit-Line W/ EMB

EnVision LED-BPL-2x2-3M40-5CCT-EMB – Backlit-Line W/ EMB

$184.80
$184.80
Sale Sold out

LED-BPL-2x2-3M40-5CCT-EMB
Request a Quote
Product Overview

The EnVision LED-BPL-2x2-3M40-5CCT-EMB is a commercial-grade panel delivering up to 4,400 lumens with selectable 40/30/20w output on 120-277V. Built for drop-ceiling office grids that demand dependable output and simple specification.

Key Features
  • Selectable power: 40/30/20w set at install, one SKU covering multiple loads
  • Output: up to 4,400 lumens matching the selected wattage
  • Field-selectable color: 3000K-6500K (5 CCT) chosen on the fixture, no re-order
  • Dimming: 0-10V for smooth level control
  • Beam angle: 110° for even coverage
  • Color rendering: CRI >80
  • Rating: Damp Location
  • Finish: White
  • Compliance: UL/DLC Listed, 5-year warranty
  • Packaged 4 per box
Technical Specifications
Brand EnVision
Wattage 40/30/20w
Lumens 4,400/3,300/2,200
Color Temperature 3000K-6500K (5 CCT)
Voltage 120-277V
Dimming 0-10V
Beam Angle 110°
CRI >80
IP Rating Damp Location
Finish White
Certification UL/DLC/ 5 Years
Box Quantity 4
UPC 819715024955
Applications

Suited to drop-ceiling office grids, healthcare and education, and retail and commercial interiors.

Compatibility & Installation Notes

Confirm the ceiling cutout or grid size matches the housing before ordering. Set the wattage and CCT switches before final mounting. Verify the location suits a damp-rated fixture. DLC listing supports utility rebates—verify your program's current QPL.

Specify the LED-BPL-2x2-3M40-5CCT-EMB where damp-rated performance is required from a single, code-listed fixture.
