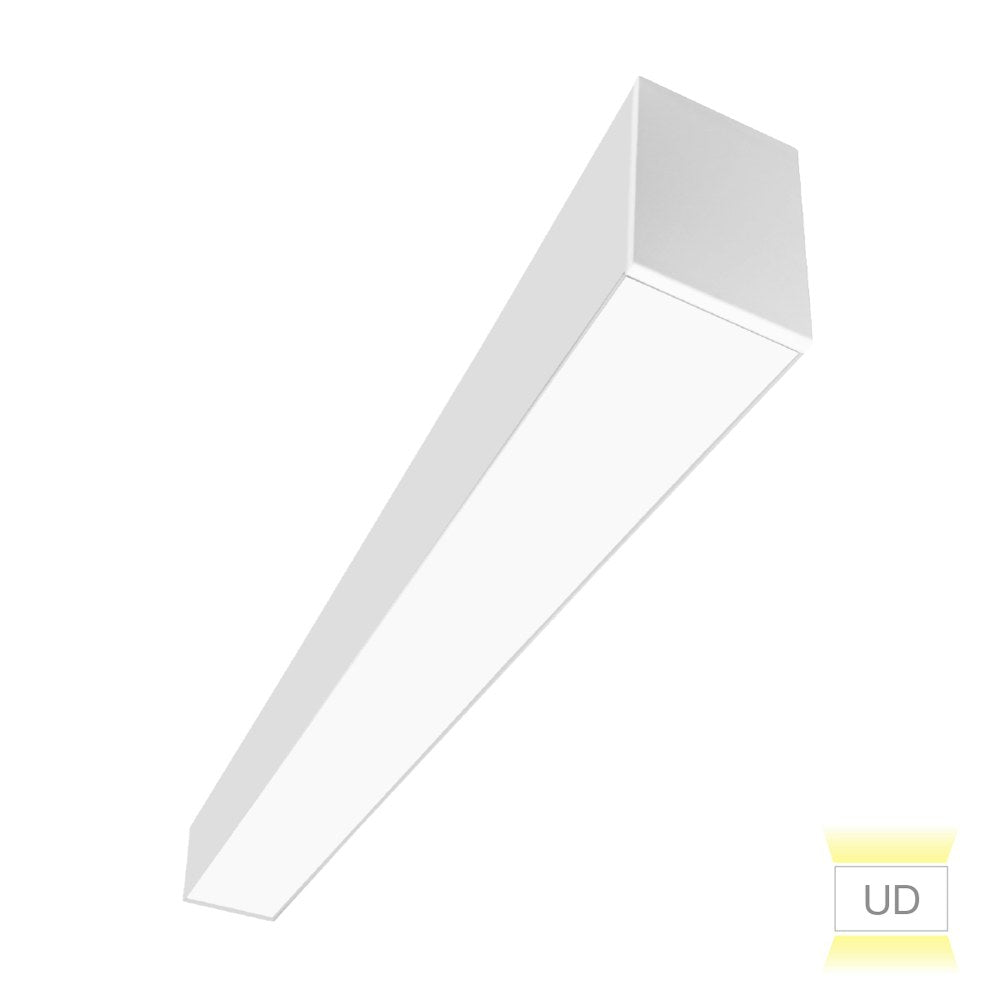

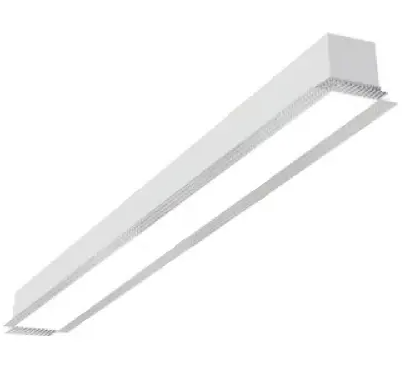

EnVision LED-ALIN2-8FT-3P100-D-5CCT-WH-TB – 8' Architectural Linear Downlight T-Bar

The EnVision LED-ALIN2-8FT-3P100-D-5CCT-WH-TB is a commercial-grade downlight delivering up to 9,600 lumens with selectable 80/60/40w output on 120-277V. Built for recessed ceiling layouts that demand dependable output and simple specification.

• Selectable power: 80/60/40w set at install, one SKU covering multiple loads
• Output: up to 9,600 lumens matching the selected wattage
• Field-selectable color: 2700K-5000K (5 CCT) chosen on the fixture, no re-order
• Dimming: 0-10V for smooth level control
• Beam angle: 110° for even coverage
• Color rendering: CRI >80
• Rating: Dry Location
• Finish: White
• Compliance: ETL Listed, 5-year warranty
• Packaged 4 per box

Suited to recessed ceiling layouts, retail and office fit-outs, and hospitality and residential ceilings.

Confirm the ceiling cutout or grid size matches the housing before ordering. Set the wattage and CCT switches before final mounting.

Specify the LED-ALIN2-8FT-3P100-D-5CCT-WH-TB where clean interior light is required from a single, code-listed fixture.
