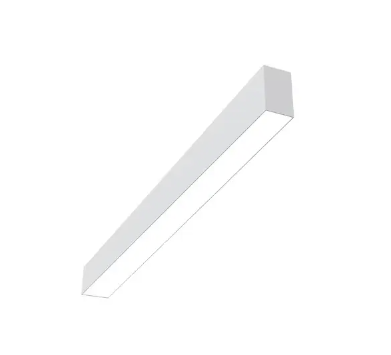

EnVision LED-ALIN2-24X24-L-3P25-D-5CCT-WH-TML – 4' L-Shape Downlight

EnVision LED-ALIN2-24X24-L-3P25-D-5CCT-WH-TML – 4' L-Shape Downlight

$378.00
$378.00
Sale Sold out

LED-ALIN2-24X24-L-3P25-D-5CCT-WH-TML
Request a Quote
Product Overview

The EnVision LED-ALIN2-24X24-L-3P25-D-5CCT-WH-TML is a commercial-grade downlight delivering up to 4,800 lumens with selectable 40/30/20w output on 120-277V. Built for recessed ceiling layouts that demand dependable output and simple specification.

Key Features
  • Selectable power: 40/30/20w set at install, one SKU covering multiple loads
  • Output: up to 4,800 lumens matching the selected wattage
  • Field-selectable color: 2700K-5000K (5 CCT) chosen on the fixture, no re-order
  • Dimming: 0-10V for smooth level control
  • Beam angle: 110° for even coverage
  • Color rendering: CRI >80
  • Rating: Dry Location
  • Finish: White
  • Compliance: ETL Listed, 5-year warranty
  • Packaged 4 per box
Technical Specifications
Brand EnVision
Wattage 40/30/20w
Lumens 4,800/3,600/2,400
Color Temperature 2700K-5000K (5 CCT)
Voltage 120-277V
Dimming 0-10V
Beam Angle 110°
CRI >80
IP Rating Dry Location
Finish White
Certification ETL/ 5 Years
Box Quantity 4
UPC LED-ALIN2-24X24-L-3P25-D-5CCT-WH-TML
Applications

Suited to recessed ceiling layouts, retail and office fit-outs, and hospitality and residential ceilings.

Compatibility & Installation Notes

Confirm the ceiling cutout or grid size matches the housing before ordering. Set the wattage and CCT switches before final mounting.

Specify the LED-ALIN2-24X24-L-3P25-D-5CCT-WH-TML where clean interior light is required from a single, code-listed fixture.
