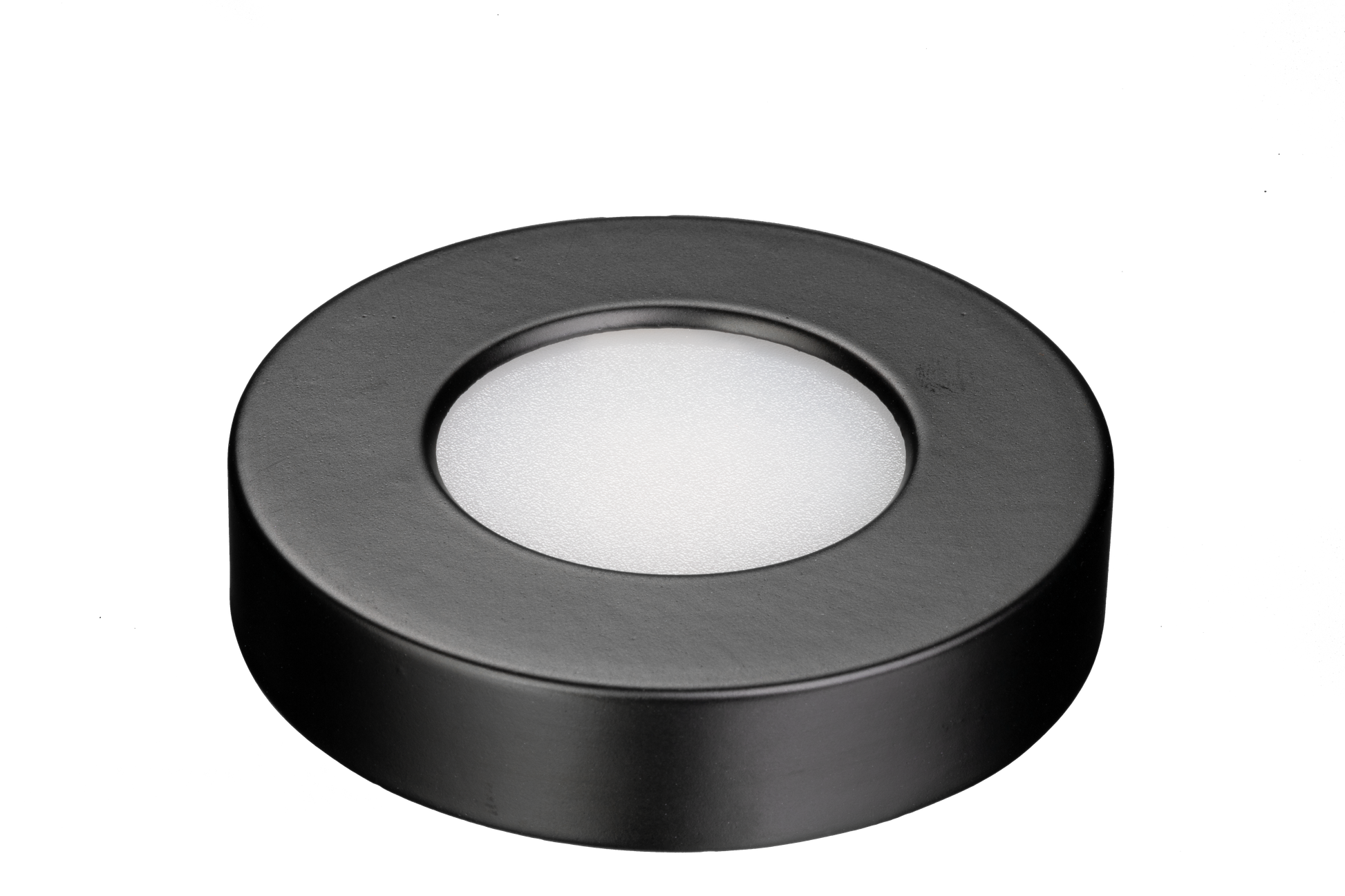

OMNISL-3CCT Omni Slim 3CCT Single Puck Light w/ Black and White Trims

Product Overview

24V ultra-slim 3" round puck light designed for low-profile cabinet, under-shelf, display, and accent lighting applications.

Selectable 3CCT color temperatures, high color rendering (CRI>90), and includes black and white screwless trims; 72" leads for connection.

Key Features

• 24V DC operation, 4W power draw, 280 lumens
• CRI >90
• Selectable 3CCT
• Ultra slim 5/8" (0.625") profile for surface or recessed mounting
• Includes two screwless trims — one black and one white
• 72" leads
• Aluminum housing; rated for dry locations

What this puck light does

The OMNISL-3CCT is a slim 3" round LED puck intended for low-profile cabinet, under-shelf, display, and accent lighting. It ships with two interchangeable screwless trims (black and white) to accommodate different finishes.

• Designed for accent and task illumination in dry indoor spaces
• Includes black and white trims for a finished appearance

Light output and color quality

The fixture produces approximately 280 lumens from 4 watts of input and offers selectable 3CCT color temperatures. The product specification lists CRI greater than 90.

• Lumen output: 280 lm
• Power: 4 W
• CRI: >90
• Selectable 3CCT

Mounting options and physical dimensions

The OMNISL-3CCT has a 3" diameter and a 0.625" (5/8") height, allowing for recessed or surface mounting where those dimensions fit.

• Diameter: 3"
• Height: 0.625" (5/8")
• Surface or recessed installation (verify fit for your application)

Electrical and connection details

This fixture operates at 24V DC and includes 72" leads for connection to a compatible 24V driver or lighting system. Verify that your driver provides appropriate voltage and current for the number of pucks used.

• Input voltage: 24V DC
• Lead length: 72"
• Power consumption: 4 W

Environmental suitability and finish

The product is specified for dry locations and has an aluminum housing. It includes interchangeable trims in black and white.

• Location rating: Dry locations only
• Housing: Aluminum
• Trim finishes: Black and white (screwless)

Before You Order

Verify your 24V driver capacity and that the 3" diameter and 0.625" height fit the intended mounting location.

• Confirm driver provides correct voltage and sufficient current for the number of pucks
• Product is for dry locations only
• Check physical space for 3" diameter and 5/8" height

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for OMNISL-3CCT Omni Slim 3CCT Single Puck Light w/ Black and White Trims. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
