MLINK-120-30-36 MicroLink 120V Task Light 30K 36in

Product Overview

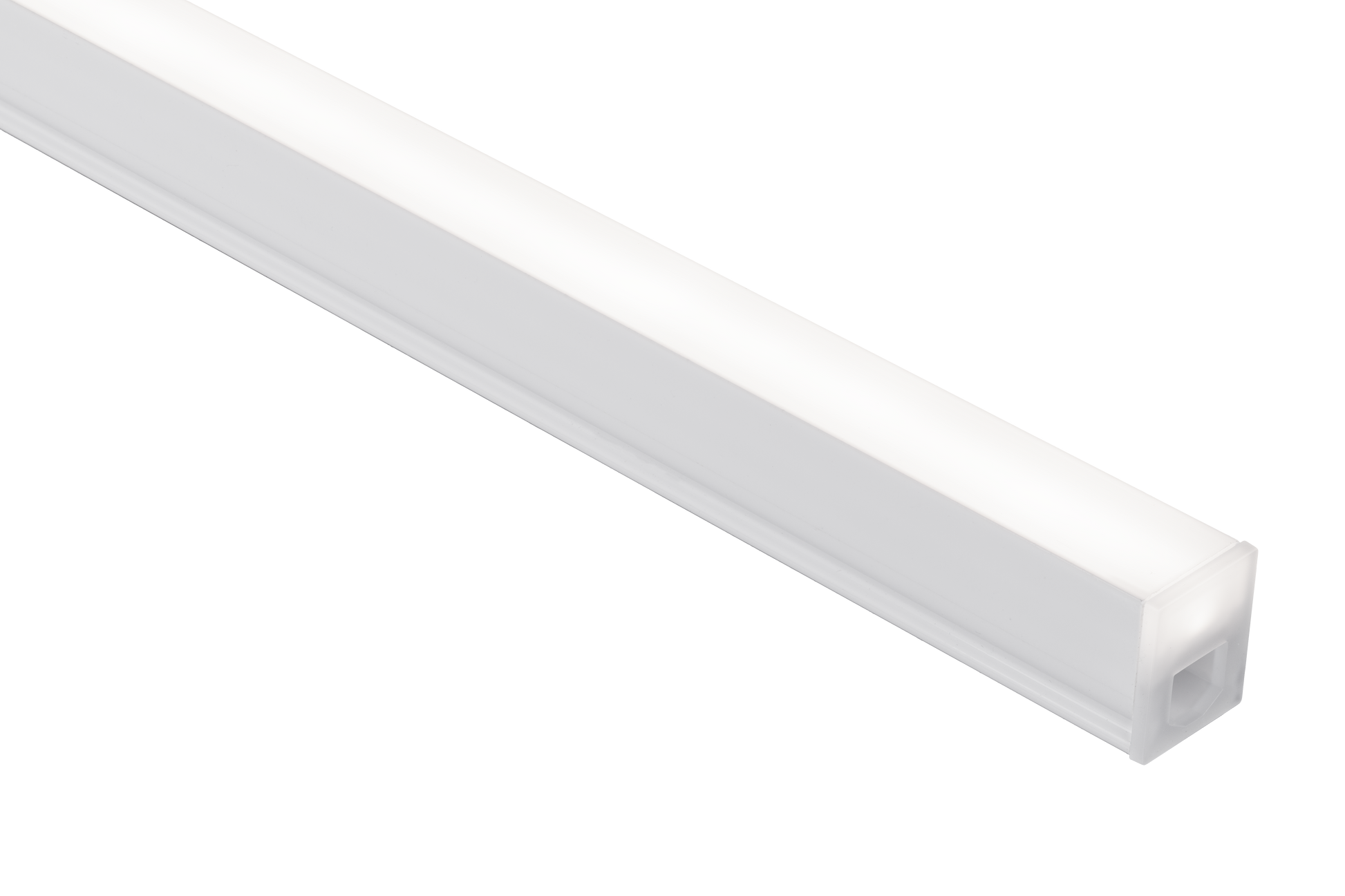

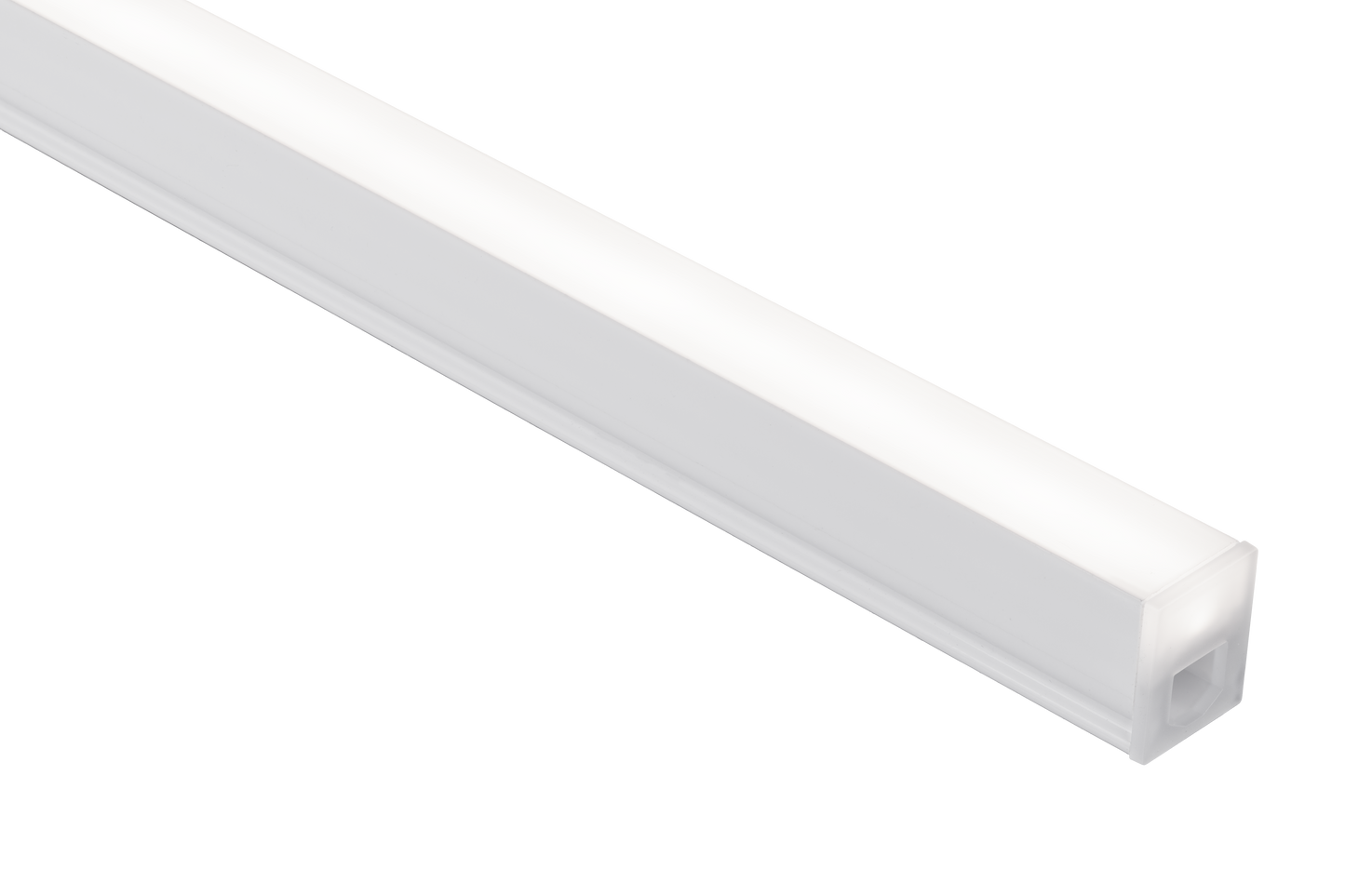

The MLINK-120-30-36 is a 36-inch MicroLink undercabinet task light designed for 120 VAC operation. It delivers 859 lumens at 3000K with high color fidelity (CRI 90+) in a satin aluminum finish.

The unit ships with one 18" MLINK-120-CONKIT, two MLINK-120-CLIP mounting clips, and one end cap. It is sold as each.

Key Features

• 36-inch integrated task light for undercabinet or task-area illumination
• Color temperature: 3000K (warm white) with CRI 90+
• Output: 859 lumens, Power: 14.4 W
• Finished in satin aluminum
• Includes 18" MLINK-120-CONKIT, two MLINK-120-CLIP mounting clips, and one end cap

Function and Intended Use

This MicroLink 120V task light is designed as an undercabinet or task-area lighting fixture. Its linear 36-inch form factor provides continuous illumination for countertops, work surfaces, or display shelving where compact, direct light is needed.

• Typical applications: undercabinet lighting, task lighting, accent illumination for cabinets and shelves

Light Output and Color

The fixture produces 859 lumens while consuming 14.4 watts, offering a balance of brightness and energy use for task lighting. The 3000K color temperature renders a warm-white appearance suitable for kitchens and living spaces, and the CRI of 90+ supports accurate color rendering of surfaces and materials.

• Lumens: 859
• Power: 14.4 W
• Color temperature: 3000K
• Color rendering index: 90+

Dimensions and Finish

Size and finish information help with planning mounting locations and matching fixtures to room finishes.

• Length: 36 inches
• Width: 0.55 inches
• Height: 0.67 inches
• Finish: Satin Aluminum

What’s Included and Mounting

The product includes the components specified for installation and attachment. Confirm electrical connection requirements and local code compliance with your installer.

• Includes: (1) 18" MLINK-120-CONKIT, (2) MLINK-120-CLIP, (1) end cap
• Sold as: Each

Technical Specifications

Key technical values are listed below to support product selection and comparison.

• SKU / Part Number: MLINK-120-30-36
• Brand: American Lighting
• Operating voltage: 120 VAC
• Application: Undercabinets / task lighting

Before You Order

Confirm the model number and quantity required before ordering. Verify mounting and electrical connection requirements with your electrician or installer to ensure compatibility with your project.

• Confirm: MLINK-120-30-36 is the correct 36" 3000K MicroLink unit for your application
• Verify that a 120 VAC supply and appropriate mounting locations are available

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for MLINK-120-30-36 MicroLink 120V Task Light 30K 36in. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
