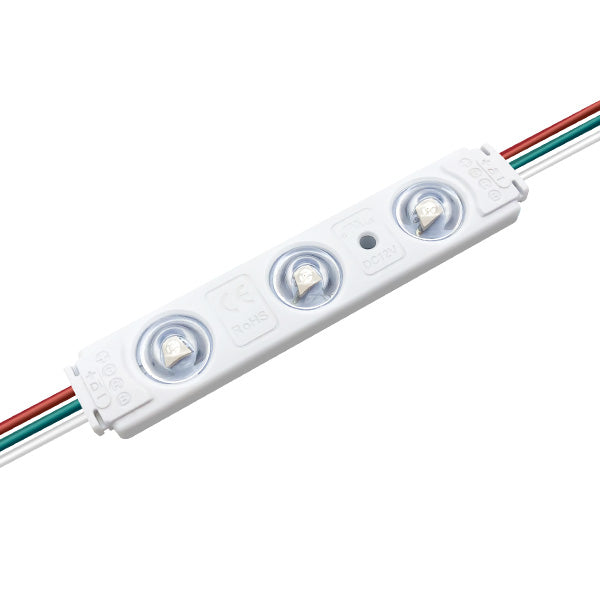

CR3-12VDC-PXLRGB-5-20 Channel Ray RGBW SPI Pixel 12v DC

Product Overview

RGB pixel string intended for flexible linear channel or trim installations. Uses SMD 5050 RGB IC LEDs grouped in triples with 20 pixels per string and a 12V DC input.

White-finish flexible assembly with total length 140.6 and low nominal power: 50 lumens and 0.76 W per string; CRI listed as 70+.

Key Features

• SMD 5050 RGB IC LEDs, grouped x3 per pixel
• 20 pixels per string (SKU CR3-12VDC-PXLRGB-5-20)
• 12V DC input
• Rated: 50 lumens and 0.76 W per string
• White finish; flexible linear form factor
• CRI: 70+

What this product is

The CR3-12VDC-PXLRGB-5-20 is an American Lighting Channel Ray flexible linear RGB pixel string sold as a single string (one SKU).

• Form factor: flexible linear string with white finish
• Sold as: one string (SKU CR3-12VDC-PXLRGB-5-20)

Light output and electrical

The string is specified at 50 lumens and 0.76 W, and requires a 12V DC supply. Color is RGB using SMD 5050 LEDs; CRI is listed as 70+.

• Lumens: 50 (per string)
• Power: 0.76 W (per string)
• Color: RGB (SMD 5050)
• CRI: 70+
• Input voltage: 12V DC

Pixel and LED configuration

Pixels use SMD 5050 RGB IC LEDs grouped three to a pixel. Each string contains 20 pixels, as indicated by the product data.

• LED type: SMD 5050 RGB IC
• Grouping: x3 LEDs per pixel
• Pixels per string: 20

Physical dimensions

Dimensions are provided for planning channel or mounting layout. Confirm physical fit with your channel or trim prior to installation.

• Length: 140.6 (units as provided in product data)
• Width: 0.68
• Height (thickness): 0.32
• Finish: White

Power and control notes

The product requires a 12V DC supply and is identified as an SPI pixel string in the product data. Verify any controller compatibility and power capacity for your installation.

• Requires: 12V DC power
• Control: SPI-compatible pixel controller (verify controller supports SMD 5050 RGB IC pixels before purchase)

Before You Order

Verify the SKU and ensure the intended controller and 12V power supply are suitable for your planned installation.

• Confirm SKU: CR3-12VDC-PXLRGB-5-20
• Ensure controller compatibility with SMD 5050 RGB IC pixels
• Confirm 12V power supply capacity for your total number of strings

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for CR3-12VDC-PXLRGB-5-20 Channel Ray RGBW SPI Pixel 12v DC. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
