Wire Connectors

The Conductor Size Decides the Connector

Connector selection starts with the conductor, not the application. The gauge, the metal, and whether the two conductors being joined are the same size all narrow the choice down to a handful of part numbers before anything else gets considered.

Compression Splices and What They Are For

A compression splice is a metal barrel that a conductor enters from each end. A hydraulic or battery-powered crimping tool then deforms the barrel around both conductors with a die matched to that specific connector, producing a joint that is mechanically and electrically as good as continuous conductor. Once crimped it cannot be undone and cannot be reused.

That permanence is the point. On a feeder, a service lateral, or a heavy tap, a mechanical connector that relies on a set screw can loosen through thermal cycling over years, and a loose connection on a large conductor generates serious heat. A properly crimped compression splice does not have that failure mode. It is why utilities, service work, and industrial feeders default to compression rather than mechanical connectors at these sizes.

Copper or Aluminum, and Never Mix Them Casually

Connectors are made for a specific conductor metal and marked accordingly. A copper barrel is for copper conductors. An aluminum barrel is for aluminum, and typically ships with an oxide-inhibiting compound already inside, because aluminum forms an insulating oxide layer the moment it is exposed to air and that layer has to be broken and kept out during the crimp.

Joining copper to aluminum requires a connector specifically listed for that combination, usually marked AL9CU or similar. Using a copper-only connector on aluminum, or joining the two metals directly, sets up galvanic corrosion at the joint that degrades the connection over time. Read the marking on the connector rather than judging by appearance, since barrel colors are not standardized across manufacturers.

Short Barrel or Long Barrel

The barrel length changes how many crimps the connector takes and how much mechanical strength the joint has. A long-barrel splice accepts more crimps per side, which gives higher pullout strength and is the usual specification for overhead work, feeders under mechanical stress, and anywhere the joint carries load. A short-barrel splice takes fewer crimps and fits where space is tight, such as a crowded pull box or an enclosure where a long connector will not lie down properly. Where the specification does not dictate one, long barrel is the more conservative choice.

Reducing and Service Entrance Splices

Not every joint connects two conductors of the same size. A reducing splice has different bore diameters at each end, so it can join a 4/0 AWG conductor to a 1/0 or a 2 AWG without adapters or doubled-up conductors. This comes up constantly at service equipment and on tap conductors feeding smaller downstream gear.

Insulated service entrance splices go a step further by including a pre-applied insulating cover over the barrel, which removes a separate taping or heat-shrink step and gives a consistent, repeatable result. On service entrance work where the joint sits in a weatherhead or a meter enclosure, that built-in insulation is worth the small premium over taping a bare barrel by hand.

Crimping Tools and Dies

This is the part that catches people ordering compression connectors for the first time. Each connector is designed around a specific die, and the manufacturer publishes which die index and how many crimps the connector requires. Using the wrong die produces a joint that looks finished and is not: under-crimped connections run hot, and over-crimped ones can crack the barrel or damage the conductor strands.

At the sizes in this collection, a hand tool will not do the job. These need a hydraulic or battery-powered crimper with the correct die set, which is a real equipment requirement rather than an optional convenience. Confirm the crew has the tooling before the connectors arrive on site.

Where the Splice Lives

Every splice needs an accessible enclosure, and at these conductor sizes the enclosure is usually sized by the raceway pull rules rather than by conductor fill. Lumera's junction boxes and enclosures collection covers those.

Where the connection terminates on equipment rather than joining two conductors, a lug is the correct device instead of a splice, and Lumera's lugs collection covers those terminations.

Grounding and bonding connections use their own dedicated hardware rather than general-purpose splices. The ground clamps collection covers the fittings listed for that purpose.

The rest of the raceway hardware around the splice point, including connectors and couplings entering the enclosure, sits in electrical fittings.

Where a cable passes through an enclosure wall and needs to be sealed and strain-relieved rather than spliced, the cable glands collection covers that hardware.

Installation and Safety

Work at these conductor sizes involves feeders, service conductors, and equipment that may not be de-energizable on the customer's schedule. This is licensed electrician work without exception, and on service conductors it often involves coordination with the utility. Confirm the conductors are dead and verified before any crimping starts, use the die specified for the connector, apply the full number of crimps the manufacturer requires, and insulate the finished joint to the same rating as the conductor insulation around it.

Wire Connector Questions, Answered

What is a compression splice and when should I use one?

A compression splice is a metal barrel that a conductor enters from each end and is crimped permanently with a hydraulic or battery-powered tool. It is the standard connection for feeders, service conductors, and heavy taps, because unlike a set-screw connector it cannot loosen through thermal cycling. It is permanent and cannot be reused.

Can I use a copper connector on aluminum conductors?

No. Connectors are listed for a specific conductor metal and marked accordingly. Aluminum connectors ship with an oxide-inhibiting compound because aluminum oxidizes immediately on exposure to air. Joining copper to aluminum requires a connector specifically listed for both metals, since direct contact sets up galvanic corrosion at the joint.

What is the difference between short-barrel and long-barrel splices?

Barrel length determines how many crimps the connector accepts. Long barrel takes more crimps per side and delivers higher pullout strength, which suits overhead work and joints under mechanical stress. Short barrel takes fewer crimps and fits where space is limited. When the specification is silent, long barrel is the safer choice.

Do I need a special tool for these connectors?

Yes. At these conductor sizes a hand tool will not produce a compliant crimp. You need a hydraulic or battery-powered crimper with the die index the connector manufacturer specifies, applying the exact number of crimps published for that part. An incorrect die produces a joint that looks finished but runs hot.

What is a reducing splice?

A reducing splice has different bore sizes at each end, so it joins two conductors of different gauges directly. It removes the need for adapters or doubled conductors, and it comes up regularly at service equipment and on tap conductors feeding smaller downstream gear.

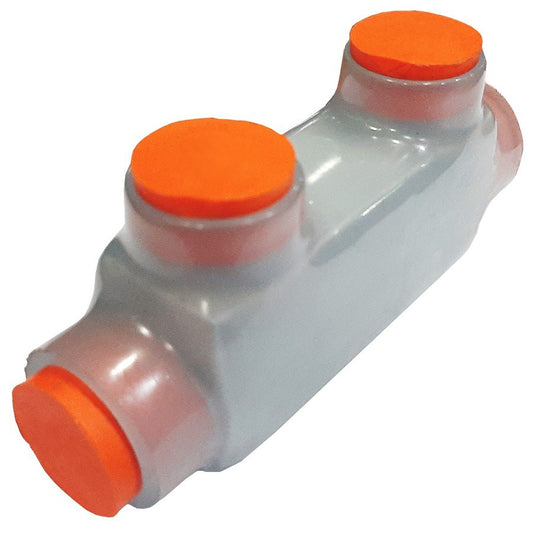

Why choose an insulated service entrance splice?

It ships with the insulating cover already applied over the barrel, so there is no separate taping or heat-shrink step after the crimp. That gives a consistent, repeatable result and saves time, which matters most on service entrance joints sitting in a weatherhead or meter enclosure.
