Where the Box Goes Decides Which Box You Need
Almost every enclosure decision comes back to two questions: what environment the box has to survive, and what is happening inside it. Get those two right and the material, rating, and cover style follow on their own.
Junction Box, Pull Box, or Device Box
These three get used interchangeably in conversation and they are not the same thing. A junction box encloses splices and taps, which is what code requires anywhere conductors are joined outside a fixture or panel. A pull box holds no splices at all; it exists purely so conductors can be pulled through a long or angled raceway run without being damaged on the bend. A device box is different again, since it holds a switch or receptacle and has to accept a cover plate. Lumera keeps that third category separate in the device and outlet boxes collection.
NEMA Ratings in Plain Language
NEMA ratings describe what an enclosure keeps out, and they are the fastest way to narrow a search. NEMA 1 is indoor only, built for dry interior walls and ceilings. NEMA 3R sheds falling rain, sleet, and ice, which covers most exterior work. NEMA 4 is watertight against direct hose-down, and 4X adds corrosion resistance for coastal air, food plants, and chemical exposure. NEMA 12 is the industrial indoor rating, sealed against circulating dust, lint, and dripping non-corrosive liquids.
The rating is only as good as the installation, though. A NEMA 4X box loses its rating the moment an unsealed knockout or the wrong fitting goes into it, so the entry hardware has to match the enclosure. For exterior work where the box, cover, and fitting need to be rated as a set, the weatherproof boxes collection groups those together.
Steel, PVC, and Nonmetallic
Material follows the environment too. Painted or galvanized steel handles general indoor and light industrial work and takes mechanical abuse well. PVC and other nonmetallic boxes will not rust or corrode, which makes them a better answer for damp locations, exterior walls, and anywhere road salt or fertilizer is in the air. Fiberglass holds up against chemicals and long UV exposure at harsh sites, and stainless steel is the specification for food processing, pharmaceutical, and marine environments. One practical note: a nonmetallic box does not carry an equipment ground the way a metal box does, so grounding has to be handled through the conductors.
Sizing: Box Fill and the Pull Rules
Two different NEC calculations apply depending on what the box is doing. If conductors are spliced inside, box fill governs, and the required volume is driven by how many conductors enter, their gauge, and what devices and clamps share the space. If the box is a pull point with no splices, the sizing comes instead from the raceway pull rules: a straight pull needs a box at least six times the diameter of the largest raceway, and an angle or U pull needs eight times. Going a size up is never a violation, and it makes the pull far easier on a crowded run.
Screw Cover or Hinged Cover

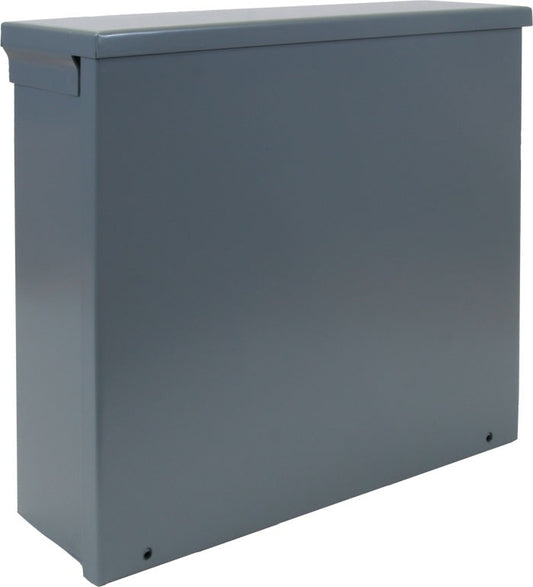

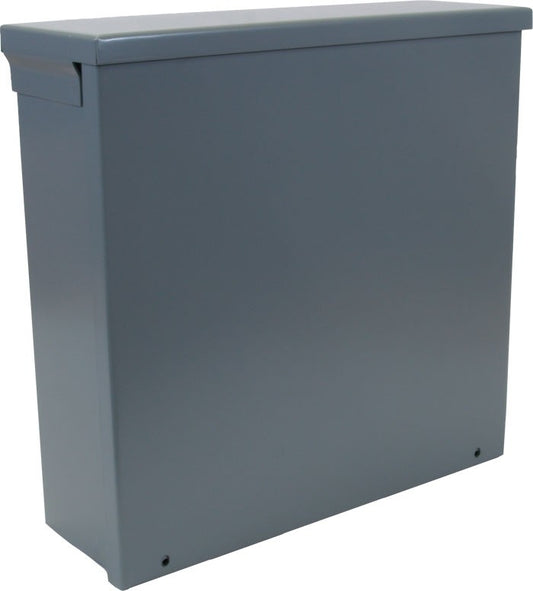

Cover choice is about how often someone opens the box. A screw cover bolts flat and is the economical pick for splice points nobody expects to revisit. A hinged cover stays captive on the enclosure and swings clear, which saves real time on a box holding terminal blocks, controls, or anything commissioned and adjusted repeatedly. On any outdoor or washdown-rated box, the gasket does the sealing work and needs to seat cleanly, so check it before the cover goes back on.
Low-Voltage LED Driver Enclosures
A large share of this collection is a different animal from a standard branch-circuit box: Diode LED LO-PRO enclosures built to house LED drivers for tape and strip lighting. They come as empty assemblies, as box-and-driver combinations in 12V, 24V, and 48V, in mini through panel sizes, and in wet-location versions for exterior cove and soffit runs. They exist because a driver still needs an accessible enclosure, and a low-profile box fits above a ceiling or inside a cove where a standard steel box will not. If you are specifying the driver itself rather than its housing, the LED drivers collection lists those separately.
What Goes Into the Box and What Enters It
Two other categories finish the assembly. The splices inside are made with connectors sized to the conductors being joined, and Lumera's wire connectors collection covers those.
Where conduit lands on the enclosure wall, the fitting has to match both the raceway type and the box rating. The conduit fittings collection covers connectors, couplings, and the hardware that makes that transition properly.
Installation and Access
Junction boxes have to stay accessible after the work is finished. Burying one behind finished drywall or above a sealed ceiling is a code violation and a headache for whoever troubleshoots the circuit later, so plan the location before the box is fastened. Any enclosure that connects to household or building wiring should be installed by a licensed electrician, who can confirm the fill calculation, the grounding method, and that the rating suits where the box actually ends up.
Junction Box and Enclosure FAQs
What is the difference between a junction box and a pull box?
A junction box contains splices and taps, and its size is set by a box fill calculation based on conductor count and gauge. A pull box contains no splices; it is an access point sized by the raceway pull rules so conductors can bend without damage. Long or multi-bend runs use pull boxes.
Which NEMA rating do I need?
NEMA 1 is indoor and dry only. NEMA 3R handles rain and ice outdoors. NEMA 4 is watertight for hose-down areas, with 4X adding corrosion resistance for coastal or chemical sites. NEMA 12 seals against industrial dust and dripping liquids indoors.
Should I use a steel or nonmetallic junction box?
Steel suits general indoor and light industrial work and resists physical damage. PVC and other nonmetallic boxes will not corrode, which makes them better for damp, exterior, and chemically aggressive locations. Keep in mind that a nonmetallic box does not carry an equipment ground, so grounding runs through the conductors.
How do I know what size junction box to buy?
If the box holds splices, the NEC box fill calculation sets the minimum volume based on the conductors, devices, and clamps inside. If it is a pull box with no splices, the box has to be at least six times the largest raceway diameter for a straight pull and eight times for an angle pull. Sizing up is always acceptable.
Why are there LED driver boxes in this collection?
Low-voltage LED drivers need an accessible enclosure the same way line-voltage splices do, and low-profile driver boxes fit where a standard steel box will not. This collection includes those enclosures as empty assemblies and as box-and-driver combinations, including wet-location versions for exterior runs.
Can a junction box be covered by drywall?
No. Junction boxes have to remain accessible after construction is complete, which means no burying them behind finished surfaces. Plan the location so the cover can be reached without cutting into a wall or ceiling later.
