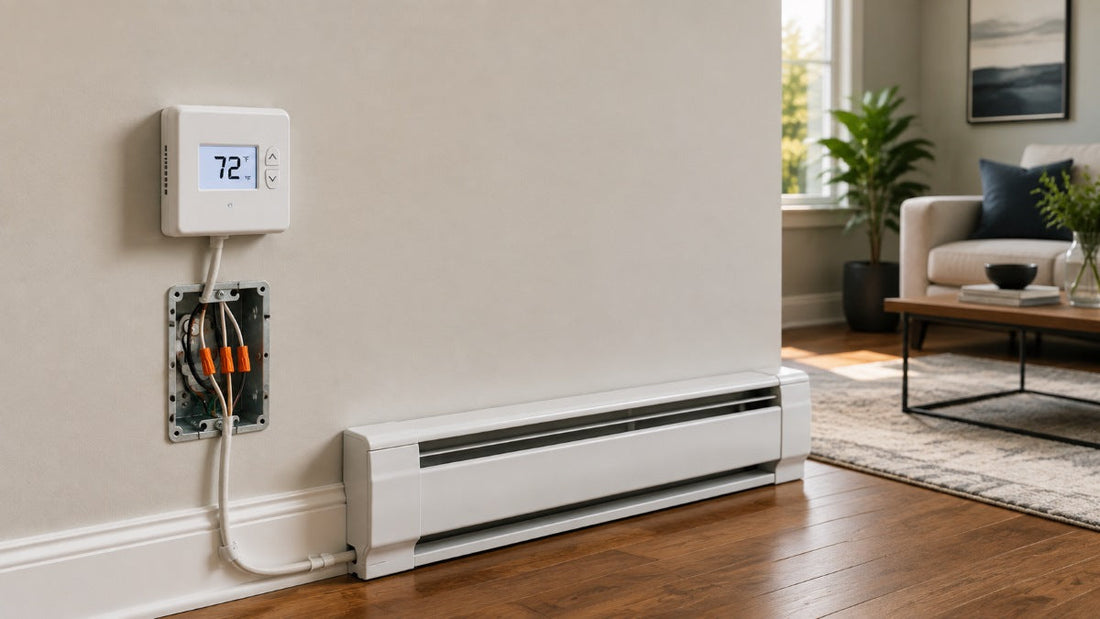

How to Wire a Line-Voltage Thermostat

A line-voltage thermostat switches the full power feeding an electric heater, 120 or 240 volts flowing straight through the device, instead of the harmless 24 volt signal a furnace thermostat handles. That is why wiring one is really an electrical job, the thermostat sits in the circuit like a temperature controlled switch, and why the wiring differs between single-pole and double-pole models. This guide covers how to tell which setup you have, the exact connections for 120 and 240 volt heaters, the white wire rule that confuses almost everyone, and the load math that protects the thermostat from the heaters it controls. It applies to the whole family of resistance heat these stats serve, the units compared in our baseboard vs wall heaters guide, and it starts, like every wiring job, at the circuit breaker.

Line Voltage or Low Voltage: Confirm Before You Buy

Open the existing thermostat, or the heater's wiring compartment, and look at the conductors. Line-voltage systems use ordinary building wire, thick 12 or 14 gauge conductors in black, white, and red, usually two or four of them plus a ground. Low-voltage systems use a slim cable of many thin colored wires. The distinction decides everything downstream, because the two families do not mix: a low-voltage smart thermostat connected to line voltage is destroyed the moment power comes on, and a line-voltage stat has no place in a furnace circuit. Baseboard heaters, electric wall heaters, and most fan forced room heaters are line-voltage loads, and everything below assumes you have confirmed you are in that world.

Single-Pole or Double-Pole: What the Wire Count Tells You

Line-voltage thermostats come in two switch configurations, and the leads give them away. A single-pole thermostat has two wires and breaks one conductor of the circuit, so even at its lowest setting one leg stays connected through the heater, which is why single-pole stats have no marked Off position, the electrical code reserves a marked Off for devices that disconnect every ungrounded conductor. A double-pole thermostat has four wires, two line and two load, breaks both conductors of a 240 volt circuit at once, and can therefore offer a true Off. The practical consequences: on a 240 volt heater a double-pole stat is the better and safer choice because Off really means off, while a single-pole model is simpler and fine where a true Off does not matter. If you are replacing an existing stat, count its wires first, two means single-pole wiring, four means double-pole.

Kill the Power and Prove It Dead

Heater circuits deserve extra respect because 240 volt circuits carry two energized conductors, and switching one of them off at a single-pole stat leaves the other one live. Turn the circuit off at the panel, a 240 volt heater sits on a two pole breaker, then verify at the thermostat box with a non contact voltage tester on every conductor, not just the one you expect to be hot. Test the tester on a known live source first so a dead battery cannot lie to you. Only when every wire in the box tests dead do the wire nuts come off.

Wiring a Single-Pole Thermostat on a 120 Volt Heater

A 120 volt heater circuit brings the box one hot, one neutral, and a ground, and the thermostat interrupts only the hot. Identify the line cable, the one arriving from the panel, and the load cable heading to the heater. Connect the incoming black hot to one thermostat lead and the outgoing black to the other lead, most single-pole stats treat the two leads as interchangeable unless the instructions mark line and load. The white neutrals never touch the thermostat: splice incoming white to outgoing white with a wire connector and fold them into the back of the box. Join the grounds to each other, to the thermostat's ground lead if it has one, and to a metal box. Mount, restore power, and the heater should respond as you sweep the dial through room temperature.

Wiring a Double-Pole Thermostat on a 240 Volt Heater

A 240 volt circuit brings two hots and a ground, and in ordinary two conductor cable the white wire serves as the second hot, which is the white wire rule: code requires re identifying that white as a hot, wrap it with black or red tape at every point it is visible, so nobody later mistakes it for a neutral. The thermostat has four leads in two pairs, line pair L1 and L2, load pair T1 and T2. Connect the two incoming conductors to L1 and L2, the two outgoing conductors to T1 and T2, keeping each cable's pair together, and join the grounds as always. Nothing lands on a neutral because this circuit has none. With power restored, the stat now opens both hot legs when the room is warm and at the Off detent, which is exactly what you paid the second pole for.

Check the Amp Rating Before You Connect Anything

A thermostat is rated for a maximum current, and the heaters it controls must total less. Many mechanical line-voltage stats carry a resistive rating around 22 amps, which works out to roughly 2,600 watts of heat at 120 volts or 5,200 watts at 240 volts, while plenty of electronic and programmable models stop at 15 or 16 amps, so read the label rather than assuming. Add up the nameplate wattage of every heater the stat will control, several baseboards daisy chained from one thermostat count together, and stay under the rating with room to spare. Two other limits ride along: these are resistive load ratings, so motors and transformers need a stat rated for them, and the circuit's own conductor sizing follows the rules in our 12 vs 14 gauge wire guide. Overloaded thermostats fail with welded or burned contacts, which in a single-pole installation can mean a heater that will not turn off.

Wall Mounted or Built Into the Heater?

Many baseboard and wall heaters accept a snap in thermostat kit, which saves running cable to a wall box but leaves the sensor sitting in the one place least representative of the room, right at the heat source. A wall mounted stat on an interior wall about five feet up, away from the heater, direct sun, and drafts, reads the air people actually feel and cycles the heat far more accurately. Use the built in kit for garages, workshops, and spaces where a couple degrees of swing is fine, and wall mount for living spaces. Either way the electrical connections follow the same single-pole and double-pole logic described above, and the stat needs a properly sized electrical box with a matching wall plate when it lives on the wall.

Smart and Electronic Line-Voltage Thermostats

Programmable and Wi-Fi thermostats for electric heat exist, but they must say line voltage or high voltage on the box, the popular low-voltage smart stats from the furnace aisle cannot switch a heater directly and can only join a line-voltage system through a separately installed relay and transformer, a fair amount of added hardware for the privilege. Electronic line-voltage models bring their own fine print, some need a minimum connected load to operate and some require a neutral in the box, so read the spec sheet against your wiring before buying. The same line-voltage control logic extends outdoors, where switches and controllers rated for the load run patio heaters and other high wattage electric heat.

Troubleshooting a Fresh Installation

A heater that stays slightly warm with a single-pole stat turned all the way down is behaving normally, one leg remains connected and a true Off requires either the breaker or a double-pole stat, the same distinction our single-pole vs double-pole breaker guide draws at the panel. No heat at all usually means a load side problem, a T terminal connection that never got made or a heater side splice that came apart. A breaker that trips on warm up points to total wattage above the circuit's capacity or a conductor pinched during mounting. And the soft click of a mechanical stat cycling is normal, where a loud buzz from an electronic model under load is a sign to verify the load is within rating.

The Bottom Line

Wiring a line-voltage thermostat comes down to one idea, the stat is a switch in series with the heater, and three disciplines: match the stat to the system, single-pole with two wires breaking one leg, double-pole with four wires breaking both and earning its true Off, handle the white wire honestly, spliced through as a neutral at 120 volts and re marked as a hot at 240, and keep the connected heater wattage under the thermostat's amp rating. Kill the power and prove every conductor dead before touching anything, and if any step of that feels beyond your experience, this is a job electricians handle quickly and cheaply compared to the cost of getting 240 volts wrong.
