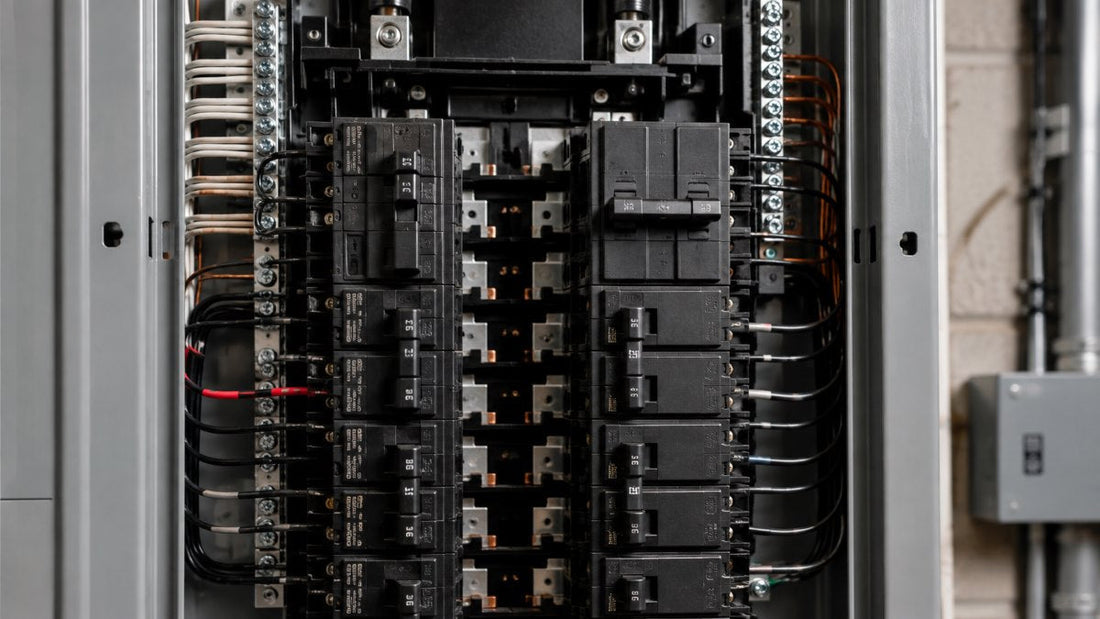

Single-Pole vs Double-Pole Breakers
The difference between a single-pole and a double-pole breaker comes down to one thing: how many of your panel's hot legs the breaker connects to, which in turn decides whether it protects a 120-volt or a 240-volt circuit. A single-pole taps one leg for standard 120V circuits like lights and outlets; a double-pole taps both legs for 240V appliances like dryers and ranges. Understanding that, along with why 240V circuits need “common trip” and why a tandem breaker is not the same thing as a double-pole, is the key to reading a panel correctly. This guide walks through both types of circuit breaker and how to choose the right one.
Your Panel Has Two Hot Legs
To understand pole count, start with how power enters a typical North American home. The utility delivers split-phase 120/240V service: two separate 120-volt “legs” that are 180 degrees out of phase with each other. Measure from either leg to the neutral and you get 120 volts; measure across both legs and you get 240 volts. Inside the panel, those two legs run as two hot bus bars. The number of poles on a breaker is simply how many of those legs it connects to, and that's what determines the voltage of the circuit it feeds.
Single-Pole Breakers
A single-pole breaker occupies one slot in the panel and connects to a single hot bus bar, one leg, delivering 120 volts. It protects the vast majority of circuits in a home: lighting, bedroom and living-room outlets, and general receptacles. Common sizes are 15 amps for lighting and general receptacles and 20 amps for kitchen, bathroom, laundry, and garage circuits (with 30-amp single-pole breakers used for certain dedicated 120V equipment). The circuit uses one hot conductor, a neutral, and a ground, and the breaker trips independently of every other breaker in the panel.
Double-Pole Breakers
A double-pole breaker occupies two slots and connects to both hot bus bars at once. Because it bridges both 120V legs, it delivers 240 volts, and it's what powers a home's large appliances: electric dryers, ranges and ovens, water heaters, central air conditioners and heat pumps, EV chargers, and subpanel feeds. Ratings run higher to match those loads, commonly 20 to 60 amps and beyond. The circuit uses two hot conductors and a ground, plus a neutral when the appliance also needs 120V (a 120/240V circuit). A single wide handle operates both poles together.
Single-Pole vs Double-Pole at a Glance
|
Factor |
Single-pole |
Double-pole |
|---|---|---|
|
Panel slots |
1 |
2 |
|
Hot legs tapped |
One |
Both |
|
Voltage |
120V |
240V (or 120/240V) |
|
Typical amperage |
15 to 20A |
20 to 60A and up |
|
Wires |
1 hot, neutral, ground |
2 hots, ground (neutral if needed) |
|
Trip action |
Independent |
Common (both poles together) |
|
Typical loads |
Lights, general outlets |
Dryer, range, HVAC, EV, water heater |
Why 240V Needs Two Poles and Common Trip
A 240V load draws power across both legs, so the breaker has to connect to, and be able to disconnect, both. But there's a safety layer beyond just tapping two legs: a true double-pole breaker provides common trip, meaning an internal mechanism trips both poles together. If a fault occurs on either leg, both poles disconnect simultaneously.
This matters enormously. Without common trip, one leg of a 240V circuit could trip while the other stayed energized, leaving 120 volts live on equipment that someone believes is completely off, a genuine shock hazard. That's also why two separate single-pole breakers are not a substitute for a double-pole: they trip independently, so one could open while the other remained closed. A real double-pole breaker guarantees both legs drop together, which is exactly the behavior a 240V circuit requires.
Tandem Is Not Double-Pole
This is the single most common point of confusion, because a tandem breaker also seems to occupy a doubled-up space. It doesn't do the same job at all. A tandem breaker (also called a twin, duplex, slimline, or cheater breaker) packs two independent 120V circuits into a single full-size panel slot, a space-saver for a crowded panel. Each of its two circuits is separate and still 120 volts; it does not create a 240V circuit and does not provide common trip between the two.
A double-pole breaker, by contrast, uses two slots to feed one 240V circuit across both legs with common trip. So tandem means “two 120V circuits in one space,” while double-pole means “one 240V circuit across two spaces.” One more caution: tandem breakers are only permitted in the specific panel positions the manufacturer lists for them, so check the panel label before adding one, and never use a tandem to sidestep a full panel without confirming it's allowed.
Multi-Wire Branch Circuits
There's a middle case worth knowing: the multi-wire branch circuit (MWBC), where two hot conductors on opposite legs share a single neutral. NEC 210.4(B) requires that such a circuit have a means to disconnect both hot conductors simultaneously, to protect anyone working on it. The exact device depends on the loads. If the MWBC feeds only 120V line-to-neutral loads, two handle-tied single-pole breakers are acceptable. If it feeds any 240V line-to-line load, a common-trip double-pole breaker is required. When in doubt, a double-pole is the safe answer.
How to Choose
The appliance or circuit tells you which breaker you need. Read the nameplate: if it says 120V, you need a single-pole breaker sized to the circuit (typically 15 or 20 amps); if it says 240V, you need a double-pole breaker sized to the nameplate rating. Note that even a 240V appliance with no neutral still uses a double-pole breaker, because you must be able to disconnect both hot legs together. A few rules keep it safe: the breaker must be listed for your specific panel brand and type, the amperage must match the wire gauge and load (never install a bigger breaker to stop nuisance tripping, since the wire size sets the maximum), and a full panel is a reason to plan a proper solution, not to force in the wrong device.
Safety and When to Call a Pro
Working inside a panel is hazardous even with the main breaker off, because the main lugs remain energized, so this is licensed-electrician territory in most jurisdictions and usually requires a permit. Match every breaker to its wire and load, use a true common-trip double-pole for any 240V circuit, and integrate new circuits properly into the power distribution system. If your panel is full or you're adding a large 240V appliance, have an electrician perform a load calculation before adding the circuit.
The Bottom Line
Single-pole and double-pole breakers differ by how many of your panel's two hot legs they connect to. A single-pole taps one leg for a 120V circuit, sized 15 to 20 amps for the lights and outlets that make up most of a home. A double-pole taps both legs for a 240V circuit, sized 20 to 60 amps and up for dryers, ranges, HVAC, and EV chargers, with common trip so both legs always disconnect together for safety. Don't confuse a double-pole with a tandem breaker, which just squeezes two 120V circuits into one slot, and always match the breaker to the appliance nameplate, the wire gauge, and your specific panel, leaving the panel work to a licensed electrician.
