• Westgate WMXE-MD-45-85W-50K-P 45W/65W/85W LED wall pack 5000K
1 1

Westgate

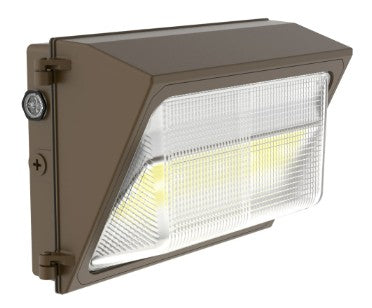

Westgate 45W/65W/85W 11,900LM Max 5000K LED Wall Pack WMXE-MD-45-85W-50K-P

Westgate 45W/65W/85W 11,900LM Max 5000K LED Wall Pack WMXE-MD-45-85W-50K-P

$108.74
$108.74
Sale Sold out

WMXE-MD-45-85W-50K-P
Request a Quote

The Westgate WMXE-MD-45-85W-50K-P is an LED wall pack that delivers selectable 45W / 65W / 85W output at 140 lumens per watt and 5000K for building exteriors, entrances, and perimeters for security and area lighting. It runs on 120-277V and supports 0-10V dimming for straightforward control.

Key Features

  • 140 LM/W efficiency keeps connected load down across the space
  • Selectable 45W / 65W / 85W lets one fixture cover several output levels from stock
  • 5000K output matches the intended commercial appearance
  • 0-10V dimming ties into standard commercial lighting controls
  • 120-277V input lands on common commercial branch circuits

Technical Specifications

Brand Westgate
Model / SKU WMXE-MD-45-85W-50K-P
Product Type LED Wall Pack
Wattage 45W / 65W / 85W (selectable)
Efficacy 140 LM/W
Color Temperature 5000K
Voltage 120-277V
Dimming 0-10V
UPC 845060087369

Applications

Common applications include:

  • Building entrances and perimeters
  • Parking-area edges
  • Security and safety lighting
  • Wall-mounted HID retrofits

Compatibility and Installation Notes

Confirm the mounting height and whether a photocell or dusk-to-dawn control is required for this LED wall pack.

Lumera Electric stocks the Westgate WMXE series for contractors specifying LED wall packs on commercial projects.
