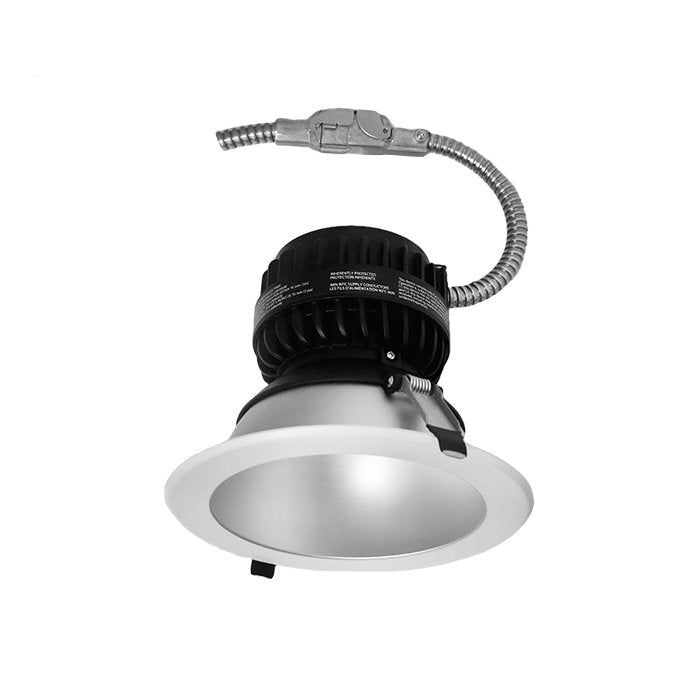

MW Lighting MHCD-20/25/30w-5CCT 20/25/30W Selectable Commercial Downlight 5-CCT Selectable

The MW Lighting MHCD-20/25/30w-5CCT is a commercial led downlight that delivers 2,100 lm at 30W for recessed ceiling lighting in residential and light-commercial spaces. It operates on 120-277V, with field-selectable color temperature.

Key Features

• Selectable wattage lets one fixture cover 20/25/30W on site, tuning output to the target light level
• Field-selectable color temperature spans 2700K / 3000K / 3500K / 4000K / 5000K selectable, so a single SKU replaces several stocked color options
• 90 CRI rendering shows truer finishes, merchandise, and skin tones
• Universal 120-277V input simplifies stocking across single- and three-phase facility circuits
• 0-10V dimming integrates with commercial lighting-control and occupancy systems
• Recessed form factor seats into the ceiling for a clean, flush aperture
• ETL, ENERGY STAR, Title 24 (JA8) listed for code-compliant installations

Technical Specifications

Applications

Common applications include:

• Recessed ceiling lighting in residential and light-commercial spaces
• LED retrofit of existing recessed cans
• New-construction and remodel ceilings
• Task and general downlighting

Compatibility and Installation Notes

Confirm the ceiling aperture and rough-in opening match the listed size, and pair with a 0-10V dimmer rated for LED loads.

Lumera Electric stocks the MW Lighting MHCD series commercial led downlight for contractors specifying recessed ceiling lighting.
