Morris 97539 Clear Insulated Connector, Dual Side Entry, 600 MCM, 3-Port
Morris 97539 Clear Insulated Connector, Dual Side Entry, 600 MCM, 3-Port
Regular price
$86.35
Regular price
Sale price
$86.35
SKU:97539
Quantity
Couldn't load pickup availability

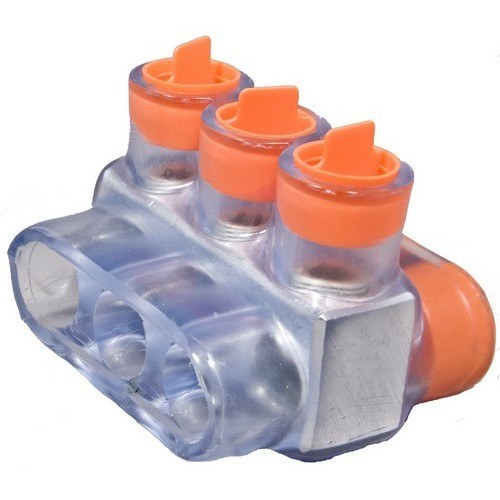

Morris's 97539 is a clear insulated connector, dual side entry accepting a 600-250 wire range and rated 600V. The 6061-T6 aluminum body carries clear plastisol-dipped high-dielectric insulation and is pre-filled with oxide inhibitor for dual copper and aluminum use.
Key Features
- CU9AL Dual Rated for Copper and/or Aluminum
- 6061-T6 Aluminum Body
- Pre-filled with Oxide Inhibitor
- Clear Plastisol-Dipped High-Dielectric Insulation
- Plugs Marked with Max Wire Size for Easy ID
- Easy Re-Entry for Inspection & Troubleshooting
- One Wire Per Terminal
- 600V, -49°F to 194°F (-45°C to 90°C)
- UL 486A/486B Listed, Service Entrance Rated, Indoor Use Only
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 97539 |
| Type | Clear Insulated Connector, Dual Side Entry |
| Wire Range | 600-250 |
| Ports | 3 |
| Entry | Dual Side |
| Conductor | Copper / Aluminum (CU9AL) |
| Insulation | Clear Plastisol |
| Voltage | 600V |
| Temperature Rating | -45°C to 90°C |
| Listing | UL 486A/486B |
| Material | 6061-T6 Aluminum |
Applications
Used for in-line splicing and multi-tap terminations of service-entrance and feeder conductors in panels, gutters, troughs, and junction boxes for indoor copper or aluminum runs.
Installation
Strip each conductor to the marked length, insert one wire per port, and tighten the set screws to the rated torque with the matching hex or slotted driver.
