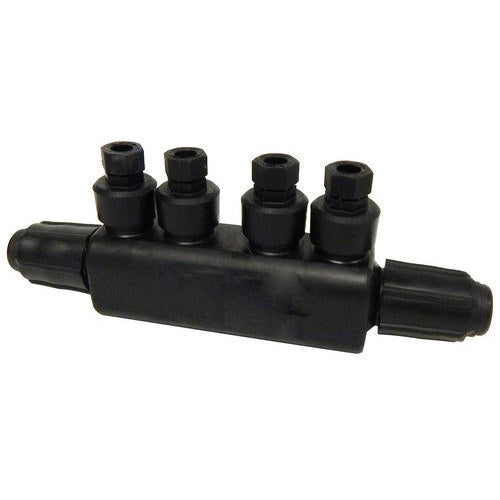

Morris 96141 Submersible Insulation Piercing Splice, 10-1/0 AWG
Morris 96141 Submersible Insulation Piercing Splice, 10-1/0 AWG
Regular price
$39.22
Regular price
Sale price
$39.22
SKU:96141
Quantity
Couldn't load pickup availability
Morris's 96141 is a fully submersible, waterproof insulation piercing in-line splice for 10-1/0 AWG copper or aluminum conductors. It splices jacketed cable without cutting or stripping, and the double shear-head bolt breaks off at the correct 220 in-lb torque inside a rubber over-molded body.
Key Features
- Insulation Piercing / Displacement Splicing - No Cutting or Stripping
- Fully Submersible, Completely Waterproof - for Copper or Aluminum Wire
- Rubber Over-Molded Body - No Contact with Bare Metal
- Double Shear-Head Bolt Breaks Off at the Correct 220 in-lb Torque
- Insert the Jacketed Cable and Tighten with a 1/2" 6-Point Socket
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 96141 |
| Type | Submersible Insulation Piercing Splice |
| Wire Range | 10-1/0 AWG |
| Splice Type | In-Line |
| Bolt Torque | 220 in-lb |
| Bolt Head Size | 3/4" |
| Conductor Compatibility | Copper / Aluminum |
| Rating | Submersible / Waterproof |
Applications
Used for direct-buried and submerged in-line splices of 10-1/0 AWG jacketed copper or aluminum cable in underground residential distribution, street lighting, and similar wet-location work.
Installation
Insert each jacketed conductor fully into the connector and tighten the 3/4" shear-head bolt with a 6-point socket until the head breaks off at 220 in-lb.
