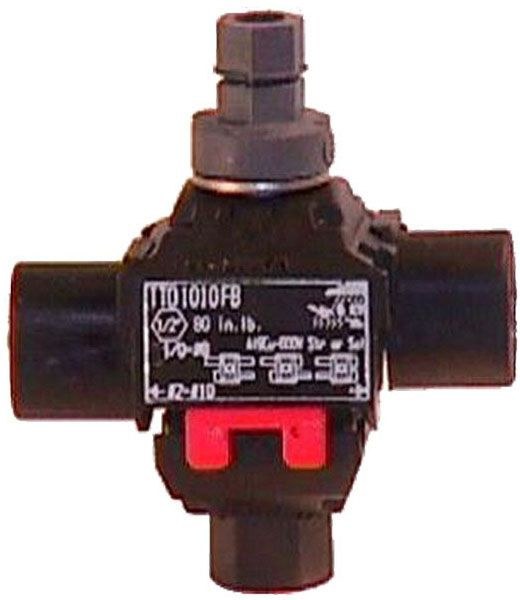

Morris 96110 Insulation Piercing Connector, 1/0 AWG Main / 1/0 AWG Tap

Morris's 96110 is an above-ground insulation piercing connector that taps a 1/0-8 AWG main to a 1/0-8 AWG tap without stripping the conductors. Tin-plated copper teeth pierce the insulation inside a fiber-reinforced thermoplastic body, and the 1 double shear-head bolt(s) break off at the correct 125 in-lb torque.

Key Features

• Insulation Piercing / Displacement Technology - Eliminates Wire Stripping
• Insert the Jacketed Cable and Tighten with a 1/2" Socket
• Can Be Installed on Energized Conductors (Tap Must Not Be Under Load)
• Double Shear-Head Bolt Breaks Off at the Correct 125 in-lb Torque
• For Overhead Services, Above-Grade URD, Street Lighting, Non-Tension Tapping, and Split-Bolt Replacement
• Water-Tight When Properly Installed - Sealant Gel Protects Against Oxygen and Water
• Tin-Plated Copper Teeth, Fiber-Reinforced Thermoplastic Body, Galvanized Steel Bolt
• For Copper or Aluminum Conductors
• Includes Blue Rubber Insert for Use on Bare Wire

Specifications

Applications

Used for overhead and above-grade tap connections - insulated or bare mains, URD services, street lighting, gutter taps, and non-tension split-bolt replacement - joining a 1/0-8 AWG main to a 1/0-8 AWG tap.

Installation

Insert the tap conductor fully into the end cap, place the connector on the main, and tighten the 1/2" shear-head bolt with a closed-end wrench or socket until the head breaks off at 125 in-lb.
