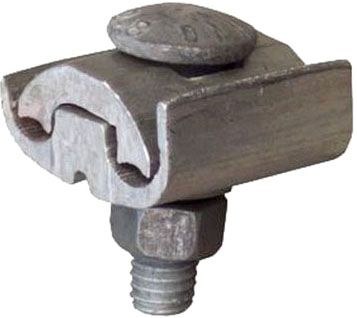

Morris 96024 Aluminum Parallel Groove Clamp, 1-Bolt, 397.5 MCM Main

Morris's 96024 is a 1-bolt aluminum parallel groove clamp for heavy-duty service-entrance and distribution line taps, joining a 1/0 AWG - 397.5 MCM (Cu/Al) main to a 6-2/0 AWG (Cu/Al) tap. It is machined from thermally treated extruded aluminum alloy, dual rated for copper, aluminum, and ACSR, and pre-filled with antioxidant inhibitor.

Key Features

• Heavy-Duty Service-Entrance and Distribution Use
• Thermally Treated Extruded Aluminum Alloy
• Dual Rated for Copper, Aluminum, and ACSR Conductors
• High Conductivity, High Strength, Corrosion Resistant
• Hot-Dip Galvanized Bolt, Lock Washer, and Nut
• Pre-Filled with Antioxidant Inhibitor

Specifications

Applications

Used for heavy-duty service-entrance and distribution parallel/line-tap connections, joining a 1/0 AWG - 397.5 MCM main conductor to a 6-2/0 AWG tap for copper, aluminum, or ACSR.

Installation

Insert the main and tap conductors into the grooves and tighten the galvanized bolt(s) with a wrench to seat both conductors against the antioxidant-filled body.
