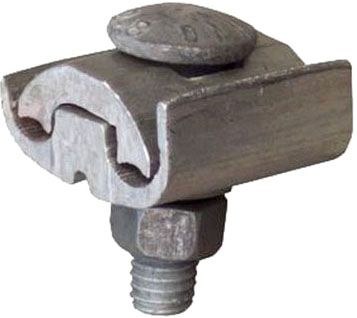

Morris 96020 Aluminum Parallel Groove Clamp, 1-Bolt, 4/0 AWG Main
Morris 96020 Aluminum Parallel Groove Clamp, 1-Bolt, 4/0 AWG Main
Regular price
$9.79
Regular price
Sale price
$9.79
SKU:96020
Quantity
Couldn't load pickup availability
Morris's 96020 is a 1-bolt aluminum parallel groove clamp for heavy-duty service-entrance and distribution line taps, joining a 1/0-4/0 AWG (Cu/Al) main to a 8-1/0 AWG (Cu/Al) tap. It is machined from thermally treated extruded aluminum alloy, dual rated for copper, aluminum, and ACSR, and pre-filled with antioxidant inhibitor.
Key Features
- Heavy-Duty Service-Entrance and Distribution Use
- Thermally Treated Extruded Aluminum Alloy
- Dual Rated for Copper, Aluminum, and ACSR Conductors
- High Conductivity, High Strength, Corrosion Resistant
- Hot-Dip Galvanized Bolt, Lock Washer, and Nut
- Pre-Filled with Antioxidant Inhibitor
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 96020 |
| Type | Aluminum Parallel Groove Clamp |
| Bolts | 1 |
| Main Range (Cu/Al) | 1/0-4/0 AWG |
| Main Range (ACSR) | 1/0-4/0 AWG |
| Tap Range (Cu/Al) | 8-1/0 AWG |
| Tap Range (ACSR) | 6-1/0 AWG |
| Material | Thermally Treated Extruded Aluminum Alloy |
| Conductor Compatibility | Copper / Aluminum / ACSR (Dual Rated) |
| Antioxidant | Pre-Filled |
Applications
Used for heavy-duty service-entrance and distribution parallel/line-tap connections, joining a 1/0-4/0 AWG main conductor to a 8-1/0 AWG tap for copper, aluminum, or ACSR.
Installation
Insert the main and tap conductors into the grooves and tighten the galvanized bolt(s) with a wrench to seat both conductors against the antioxidant-filled body.
