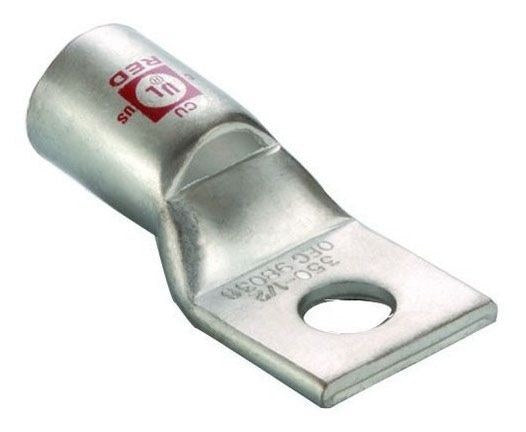

Morris 94824 Copper Short-Barrel Compression Lug, 400 MCM, 3/8" Stud, 1-Hole
Morris 94824 Copper Short-Barrel Compression Lug, 400 MCM, 3/8" Stud, 1-Hole
Regular price
$17.84
Regular price
Sale price
$17.84
SKU:94824
Quantity
Couldn't load pickup availability
Morris's 94824 is a copper short-barrel compression lug that terminates a 400 MCM conductor on a 3/8" stud with 1-hole mounting. It is made of high-conductivity seamless copper with electro-tin plating, has a color-coded (Blue) die index printed on the barrel, and is UL 486AB Listed through 35kV.
Key Features
- High-Conductivity Seamless Copper
- Electro-Tin Plating Resists Corrosion
- Color-Coded Die Index and Crimp Marks Printed on Barrel
- UL 486AB Listed for Applications Through 35kV
- Single Mounting Hole
- Inspection Window
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 94824 |
| Type | Copper Short-Barrel Compression Lug |
| Conductor Size | 400 MCM |
| Stud Size | 3/8" |
| Mounting | 1-Hole |
| Barrel | Short Barrel |
| Die Color Code | Blue |
| Material | Seamless Copper, Tin-Plated |
| Rating | UL 486AB Through 35kV |
Applications
Used to terminate 400 MCM copper conductors to bus, panels, and equipment with a 3/8" bolt.
Installation
Strip the conductor to barrel depth, insert fully, and crimp with the Blue-coded die; bolt the tongue to the 3/8" stud.
