Morris 94428 Copper Short-Barrel Compression Splice, 250 MCM
Morris 94428 Copper Short-Barrel Compression Splice, 250 MCM
Regular price
$11.65
Regular price
Sale price
$11.65
SKU:94428
Quantity
Couldn't load pickup availability

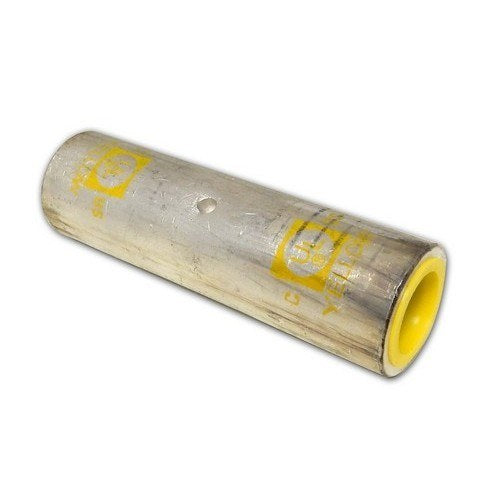

Morris's 94428 is a copper short-barrel compression splice (butt connector) that joins two 250 MCM conductors end to end. It has a beveled entry for easy insertion, is made of high-conductivity seamless copper with electro-tin plating, has a color-coded (Yellow) die index, and is UL 486AB Listed through 35kV.
Key Features
- High-Conductivity Seamless Copper
- Electro-Tin Plating Resists Corrosion
- Color-Coded Die Index and Crimp Marks Printed on Barrel
- UL 486AB Listed for Applications Through 35kV
- Inline Butt Splice
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 94428 |
| Type | Copper Short-Barrel Compression Splice |
| Conductor Size | 250 MCM |
| Barrel | Short Barrel |
| Die Color Code | Yellow |
| Material | Seamless Copper, Tin-Plated |
| Rating | UL 486AB Through 35kV |
Applications
Used to splice two 250 MCM copper conductors inline in feeders, services, and equipment wiring.
Installation
Insert one conductor into each end of the barrel to the center stop and crimp both sides with the Yellow-coded die.
