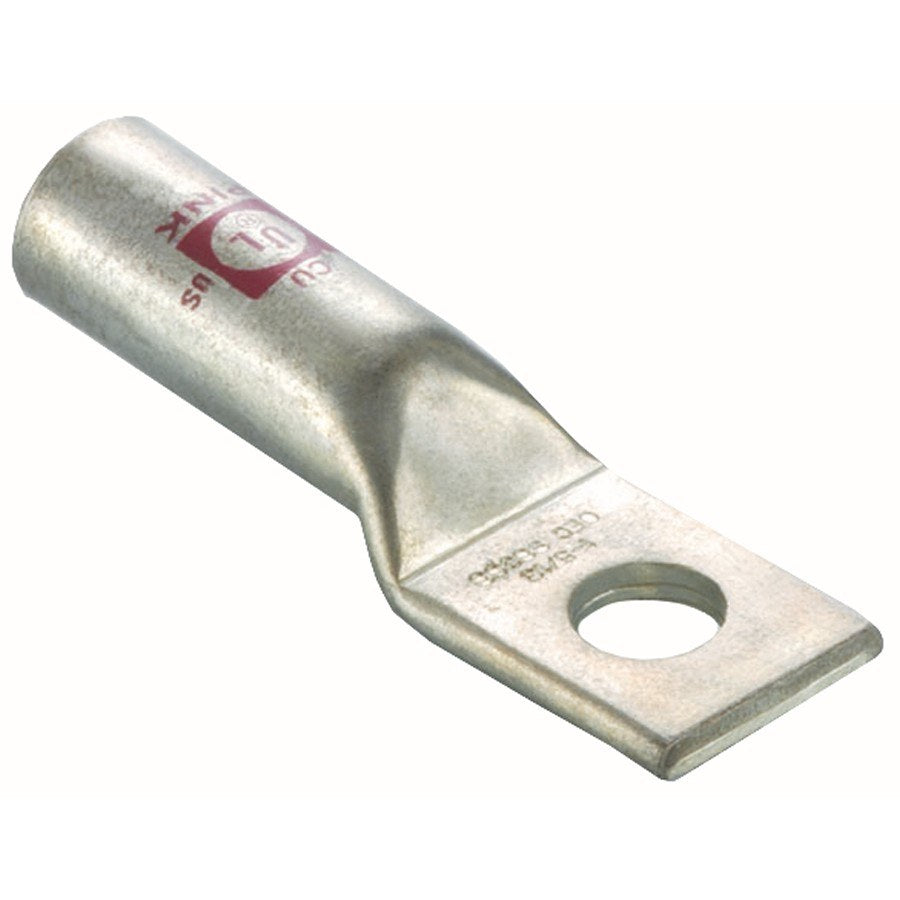

Morris 94282 Copper Long-Barrel Compression Lug, 500 MCM, 5/8" Stud, 1-Hole
Morris 94282 Copper Long-Barrel Compression Lug, 500 MCM, 5/8" Stud, 1-Hole
Regular price
$36.14
Regular price
Sale price
$36.14
SKU:94282
Quantity
Couldn't load pickup availability
Morris's 94282 is a copper long-barrel compression lug that terminates a 500 MCM conductor on a 5/8" stud with 1-hole mounting. It is made of high-conductivity seamless copper with electro-tin plating, has a color-coded (Brown) die index printed on the barrel, and is UL 486AB Listed through 35kV.
Key Features
- High-Conductivity Seamless Copper
- Electro-Tin Plating Resists Corrosion
- Color-Coded Die Index and Crimp Marks Printed on Barrel
- UL 486AB Listed for Applications Through 35kV
- Single Mounting Hole
- Long Barrel Accommodates Multiple Crimps
- Inspection Window
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 94282 |
| Type | Copper Long-Barrel Compression Lug |
| Conductor Size | 500 MCM |
| Stud Size | 5/8" |
| Mounting | 1-Hole |
| Barrel | Long Barrel |
| Die Color Code | Brown |
| Material | Seamless Copper, Tin-Plated |
| Rating | UL 486AB Through 35kV |
Applications
Used to terminate 500 MCM copper conductors to bus, panels, and equipment with a 5/8" bolt.
Installation
Strip the conductor to barrel depth, insert fully, and crimp with the Brown-coded die; bolt the tongue to the 5/8" stud.
