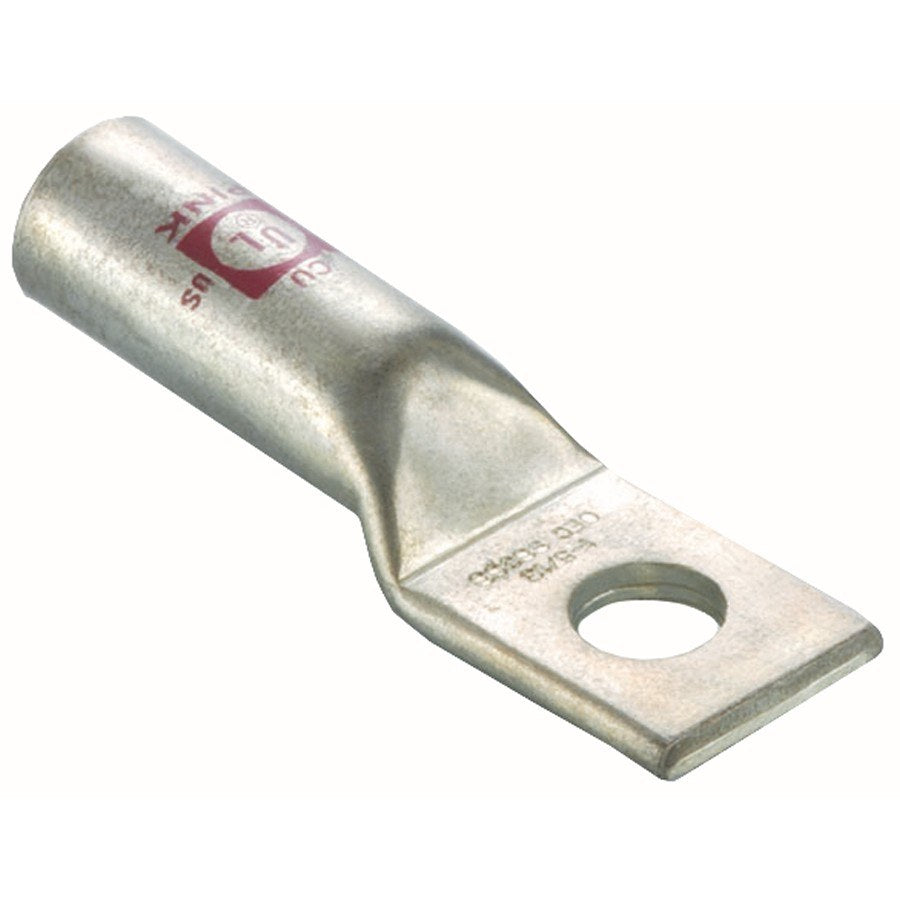

Morris 94230 Copper Long-Barrel Compression Lug, 1/0 AWG, 5/16" Stud, 1-Hole
Morris 94230 Copper Long-Barrel Compression Lug, 1/0 AWG, 5/16" Stud, 1-Hole
Regular price
$9.36
Regular price
Sale price
$9.36
SKU:94230
Quantity
Couldn't load pickup availability
Morris's 94230 is a copper long-barrel compression lug that terminates a 1/0 AWG stranded conductor on a 5/16" stud with 1-hole mounting. It is made of high-conductivity seamless copper with electro-tin plating, has a color-coded (Pink) die index printed on the barrel, and is UL 486AB Listed through 35kV.
Key Features
- High-Conductivity Seamless Copper
- Electro-Tin Plating Resists Corrosion
- Color-Coded Die Index and Crimp Marks Printed on Barrel
- UL 486AB Listed for Applications Through 35kV
- Single Mounting Hole
- Long Barrel Accommodates Multiple Crimps
- Inspection Window
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 94230 |
| Type | Copper Long-Barrel Compression Lug |
| Conductor Size | 1/0 AWG (Stranded) |
| Stud Size | 5/16" |
| Mounting | 1-Hole |
| Barrel | Long Barrel |
| Die Color Code | Pink |
| Material | Seamless Copper, Tin-Plated |
| Rating | UL 486AB Through 35kV |
Applications
Used to terminate 1/0 AWG copper conductors to bus, panels, and equipment with a 5/16" bolt.
Installation
Strip the conductor to barrel depth, insert fully, and crimp with the Pink-coded die; bolt the tongue to the 5/16" stud.
