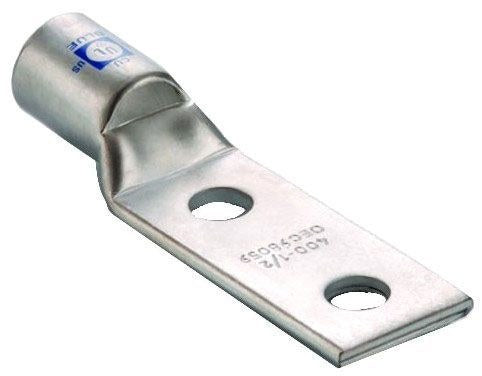

Morris 94180 Copper Short-Barrel Compression Lug, #300 AWG, 1/2" Stud, 2-Hole
Morris 94180 Copper Short-Barrel Compression Lug, #300 AWG, 1/2" Stud, 2-Hole
Regular price
$25.54
Regular price
Sale price
$25.54
SKU:94180
Quantity
Couldn't load pickup availability
Morris's 94180 is a copper short-barrel compression lug that terminates a #300 AWG conductor on a 1/2" stud with 2-hole mounting. It is made of high-conductivity seamless copper with electro-tin plating, has a color-coded (White) die index printed on the barrel, and is UL 486AB Listed through 35kV.
Key Features
- High-Conductivity Seamless Copper
- Electro-Tin Plating Resists Corrosion
- Color-Coded Die Index and Crimp Marks Printed on Barrel
- UL 486AB Listed for Applications Through 35kV
- Dual Mounting Holes for Superior Contact Integrity
- Inspection Window
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 94180 |
| Type | Copper Short-Barrel Compression Lug |
| Conductor Size | #300 AWG |
| Stud Size | 1/2" |
| Mounting | 2-Hole |
| Barrel | Short Barrel |
| Die Color Code | White |
| Material | Seamless Copper, Tin-Plated |
| Rating | UL 486AB Through 35kV |
Applications
Used to terminate #300 AWG copper conductors to bus, panels, and equipment with a 1/2" bolt.
Installation
Strip the conductor to barrel depth, insert fully, and crimp with the White-coded die; bolt the tongue to the 1/2" stud.
