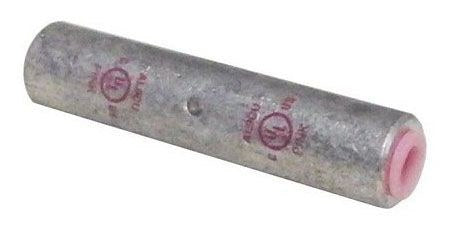

Morris 93226 Aluminum Long-Barrel Compression Splice, 250 MCM

Morris's 93226 is a aluminum long-barrel compression splice (butt connector) that joins two 250 MCM conductors end to end. It is pre-filled with oxide inhibitor and AL9CU dual-rated, is made of high-conductivity seamless aluminum with electro-tin plating, has a color-coded (Red) die index, and is UL 486AB Listed through 35kV.

Key Features

• AL9CU Listed - For Both Aluminum and Copper Conductors
• Pre-Filled with Oxide Inhibitor
• Made of High-Conductivity Seamless Aluminum
• Electro-Tin Plating Resists Corrosion
• Color-Coded Die Index and Crimp Marks Printed on Barrel
• UL 486AB Listed for Applications Through 35kV
• Inline Butt Splice

Specifications

Applications

Used to splice two 250 MCM aluminum or copper conductors inline in feeders, services, and equipment wiring.

Installation

Insert one conductor into each end of the barrel to the center stop and crimp both sides with the Red-coded die.
