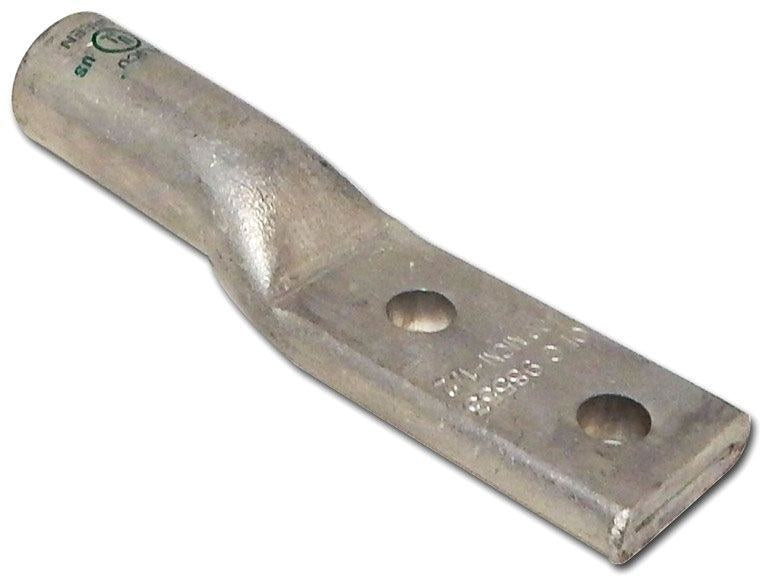

Morris 93119 Aluminum Long-Barrel Compression Lug, 300 MCM, 3/8" Stud, 2-Hole

Morris's 93119 is a aluminum long-barrel compression lug that terminates a 300 MCM conductor on a 3/8" stud with 2-hole mounting. It is made of high-conductivity seamless aluminum with electro-tin plating, is pre-filled with oxide inhibitor and AL9CU dual-rated for aluminum and copper conductors, has a color-coded (Blue) die index printed on the barrel, and is UL 486AB Listed through 35kV.

Key Features

• AL9CU Listed - For Both Aluminum and Copper Conductors
• Pre-Filled with Oxide Inhibitor
• Made of High-Conductivity Seamless Aluminum
• Electro-Tin Plating Resists Corrosion
• Color-Coded Die Index and Crimp Marks Printed on Barrel
• UL 486AB Listed for Applications Through 35kV
• Dual Mounting Holes for Superior Contact Integrity
• Long Barrel Accommodates Multiple Crimps

Specifications

Applications

Used to terminate 300 MCM aluminum or copper conductors to bus, panels, and equipment with a 3/8" bolt.

Installation

Strip the conductor to barrel depth, insert fully, and crimp with the Blue-coded die; bolt the tongue to the 3/8" stud.
