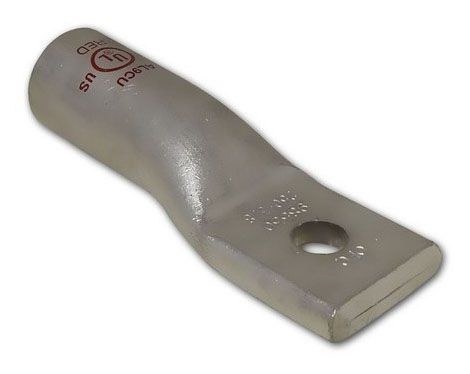

Morris 93074 Aluminum Long-Barrel Compression Lug, 350 MCM, 1/2" Stud, 1-Hole

Morris's 93074 is a aluminum long-barrel compression lug that terminates a 350 MCM conductor on a 1/2" stud with 1-hole mounting. It is made of high-conductivity seamless aluminum with electro-tin plating, is pre-filled with oxide inhibitor and AL9CU dual-rated for aluminum and copper conductors, has a color-coded (Brown) die index printed on the barrel, and is UL 486AB Listed through 35kV.

Key Features

• AL9CU Listed - For Both Aluminum and Copper Conductors
• Pre-Filled with Oxide Inhibitor
• Made of High-Conductivity Seamless Aluminum
• Electro-Tin Plating Resists Corrosion
• Color-Coded Die Index and Crimp Marks Printed on Barrel
• UL 486AB Listed for Applications Through 35kV
• Single Mounting Hole
• Long Barrel Accommodates Multiple Crimps

Specifications

Applications

Used to terminate 350 MCM aluminum or copper conductors to bus, panels, and equipment with a 1/2" bolt.

Installation

Strip the conductor to barrel depth, insert fully, and crimp with the Brown-coded die; bolt the tongue to the 1/2" stud.
