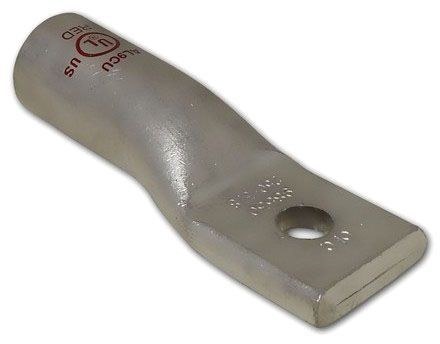

Morris 93072 Aluminum Long-Barrel Compression Lug, 350 MCM, 3/8" Stud, 1-Hole
Morris 93072 Aluminum Long-Barrel Compression Lug, 350 MCM, 3/8" Stud, 1-Hole
Regular price
$21.01
Regular price
Sale price
$21.01
SKU:93072
Quantity
Couldn't load pickup availability
Morris's 93072 is a aluminum long-barrel compression lug that terminates a 350 MCM conductor on a 3/8" stud with 1-hole mounting. It is made of high-conductivity seamless aluminum with electro-tin plating, is pre-filled with oxide inhibitor and AL9CU dual-rated for aluminum and copper conductors, has a color-coded (Brown) die index printed on the barrel, and is UL 486AB Listed through 35kV.
Key Features
- AL9CU Listed - For Both Aluminum and Copper Conductors
- Pre-Filled with Oxide Inhibitor
- Made of High-Conductivity Seamless Aluminum
- Electro-Tin Plating Resists Corrosion
- Color-Coded Die Index and Crimp Marks Printed on Barrel
- UL 486AB Listed for Applications Through 35kV
- Single Mounting Hole
- Long Barrel Accommodates Multiple Crimps
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 93072 |
| Type | Aluminum Long-Barrel Compression Lug |
| Conductor Size | 350 MCM |
| Stud Size | 3/8" |
| Mounting | 1-Hole |
| Barrel | Long Barrel |
| Die Color Code | Brown |
| Material | Seamless Aluminum, Tin-Plated |
| Rating | UL 486AB Through 35kV; AL9CU Dual-Rated |
Applications
Used to terminate 350 MCM aluminum or copper conductors to bus, panels, and equipment with a 3/8" bolt.
Installation
Strip the conductor to barrel depth, insert fully, and crimp with the Brown-coded die; bolt the tongue to the 3/8" stud.
