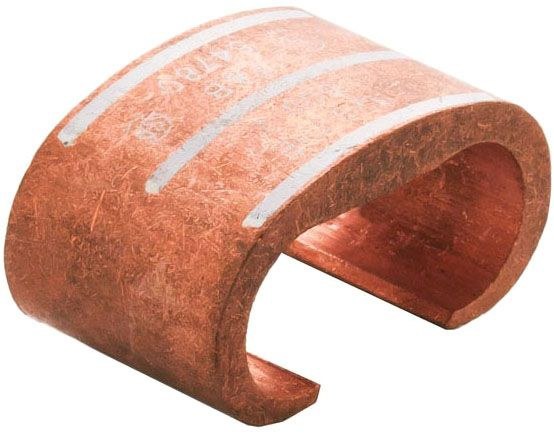

Morris 91825 Heavy Wall Copper C-Tap, 3/0-4/0 AWG, Type D3 Die

Morris 91825 Heavy Wall Copper C-Tap, 3/0-4/0 AWG, Type D3 Die

$29.12
$29.12
Sale Sold out

91825

Morris's 91825 is a heavy wall copper C-tap compression connector for copper-to-copper tapping, splicing, and stub or pigtail connections across a 3/0-4/0 AWG conductor range. It is made of heavy wall high-strength electrolytic copper and secures a run and tap conductor in a single die crimp.

Key Features

  • Copper to Copper Tapping, Splicing or Stub/Pigtail
  • Heavy Wall High Strength Electrolytic Copper
  • Allows for 2 Continuous Parallel Conductors
  • Compact Size and Range Taking
  • UL467 Listed, CSA C22.2 No.41 - Suitable for Direct Burial & Grounding/Bonding

Specifications

Brand Morris
Catalog No. 91825
Type Heavy Wall Copper C-Tap
Conductor Range 3/0-4/0 AWG
Run Range 3/0-4/0 AWG
Tap Range 3/0-4/0 AWG
Die Type D3
Material Heavy Wall High Strength Electrolytic Copper
Listing UL467, CSA C22.2 No.41
Direct Burial Yes (Soil & Concrete)

Applications

Used for copper-to-copper tap, splice, and stub or pigtail connections in grounding, bonding, and power distribution, including direct burial in soil and concrete for conductors within the 3/0-4/0 AWG range.

Installation

Position the run and tap conductors in the C-tap and compress with the Type D3 die using a hydraulic or battery-powered crimp tool.
