Morris

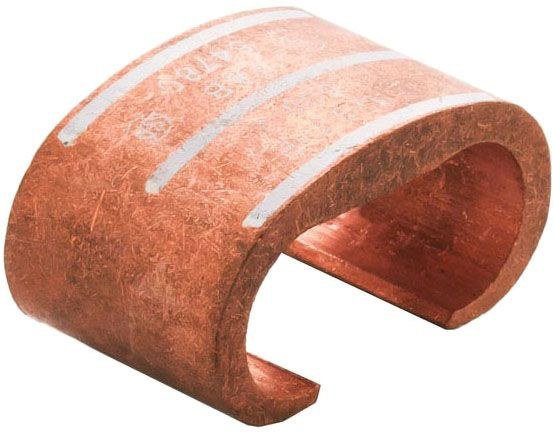

Morris 91818 Copper C-Tap, 6 AWG - 750 MCM
Morris 91818 Copper C-Tap, 6 AWG - 750 MCM
Regular price
$112.52
Regular price
Sale price
$112.52
SKU:91818
Quantity
Couldn't load pickup availability
Morris's 91818 is a copper C-tap compression connector for copper-to-copper tapping, splicing, and stub or pigtail connections across a 6 AWG - 750 MCM conductor range. It is made of high-strength electrolytic copper and secures a run and tap conductor in a single die crimp.
Key Features
- Copper to Copper Tapping, Splicing or Stub/Pigtail
- High Strength Electrolytic Copper
- Allows for 2 Continuous Parallel Conductors
- Compact Size and Range Taking
- Not Listed for Direct Burial, Grounding, or Bonding
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 91818 |
| Type | Copper C-Tap |
| Conductor Range | 6 AWG - 750 MCM |
| Material | High Strength Electrolytic Copper |
| Direct Burial | Not Rated |
Applications
Used for indoor and aboveground copper-to-copper tap and splice connections for conductors within the 6 AWG - 750 MCM range. This connector is not listed for direct burial, grounding, or bonding.
Installation
Position the run and tap conductors in the C-tap and compress with the matching die using a hydraulic or battery-powered crimp tool.
