Morris 91814 Copper C-Tap, 8 AWG - 300 MCM, Blue Die
Morris 91814 Copper C-Tap, 8 AWG - 300 MCM, Blue Die
Regular price
$23.58
Regular price
Sale price
$23.58
SKU:91814
Quantity
Couldn't load pickup availability

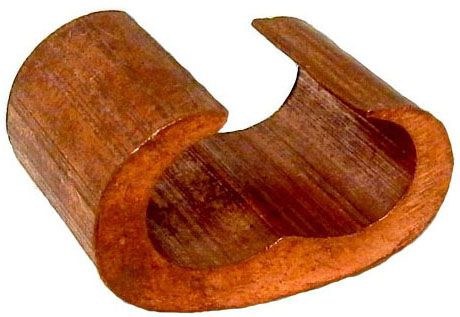

Morris's 91814 is a copper C-tap compression connector for copper-to-copper tapping, splicing, and stub or pigtail connections across a 8 AWG - 300 MCM conductor range. It is made of high-strength electrolytic copper and secures a run and tap conductor in a single die crimp.
Key Features
- Copper to Copper Tapping, Splicing or Stub/Pigtail
- High Strength Electrolytic Copper
- Allows for 2 Continuous Parallel Conductors
- Compact Size and Range Taking
- UL467 Listed, CSA C22.2 No.41 - Suitable for Direct Burial & Grounding/Bonding
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 91814 |
| Type | Copper C-Tap |
| Conductor Range | 8 AWG - 300 MCM |
| Die Color | Blue |
| Material | High Strength Electrolytic Copper |
| Listing | UL467, CSA C22.2 No.41 |
| Direct Burial | Yes (Soil & Concrete) |
Applications
Used for copper-to-copper tap, splice, and stub or pigtail connections in grounding, bonding, and power distribution, including direct burial in soil and concrete for conductors within the 8 AWG - 300 MCM range.
Installation
Position the run and tap conductors in the C-tap and compress with the Blue die using a hydraulic or battery-powered crimp tool.
