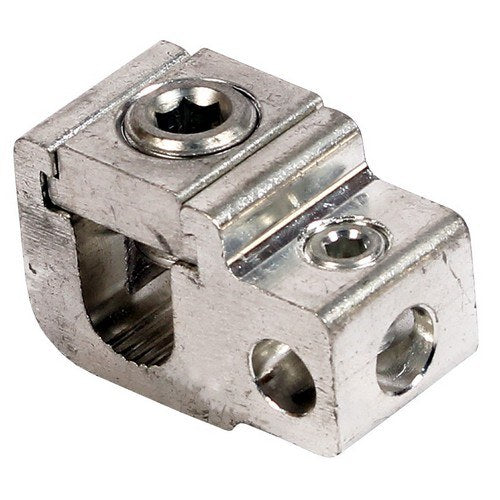

Morris 91023 Aluminum Tee Tap Connector, 750 MCM Run / 500 MCM Tap
Morris 91023 Aluminum Tee Tap Connector, 750 MCM Run / 500 MCM Tap
Regular price
$42.98
Regular price
Sale price
$42.98
SKU:91023
Quantity
Couldn't load pickup availability
Morris's 91023 is an aluminum parallel and tee tap connector with dual entry holes that joins a 750-500 MCM run conductor to a 500 MCM - 2 AWG tap conductor. It is machined from high-strength 6061-T6 aluminum alloy, electro-tin plated, and dual rated for copper or aluminum; it is reusable and rated 600V at 90°C.
Key Features
- Dual Rated for Copper and Aluminum Conductors, Electro-Tin Plated
- High-Strength 6061-T6 Aluminum Alloy
- Dual Entry Wire Holes for Parallel or Tee Tap Connections
- Assembly with Only a Screwdriver or Allen Wrench
- Re-Usable
- UL486B AL9CU Listed
- Rated 90°C, 600V
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 91023 |
| Type | Aluminum Parallel / Tee Tap Connector |
| Run (Main) Range | 750-500 MCM |
| Tap Range | 500 MCM - 2 AWG |
| Material | 6061-T6 Aluminum Alloy, Electro-Tin Plated |
| Conductor Compatibility | Copper / Aluminum (Dual Rated) |
| Connection | Parallel or Tee Tap (Dual Entry) |
| Voltage | 600V |
| Temperature Rating | 90°C |
| Listing | UL486B AL9CU |
| Reusable | Yes |
Applications
Used for service-entrance and distribution parallel or tee-tap connections, joining a 750-500 MCM run conductor to a 500 MCM - 2 AWG tap for copper or aluminum building wire.
Installation
Insert the run conductor in the main hole and the tap conductor in the tap hole, then tighten the set screws with a screwdriver or Allen wrench.
