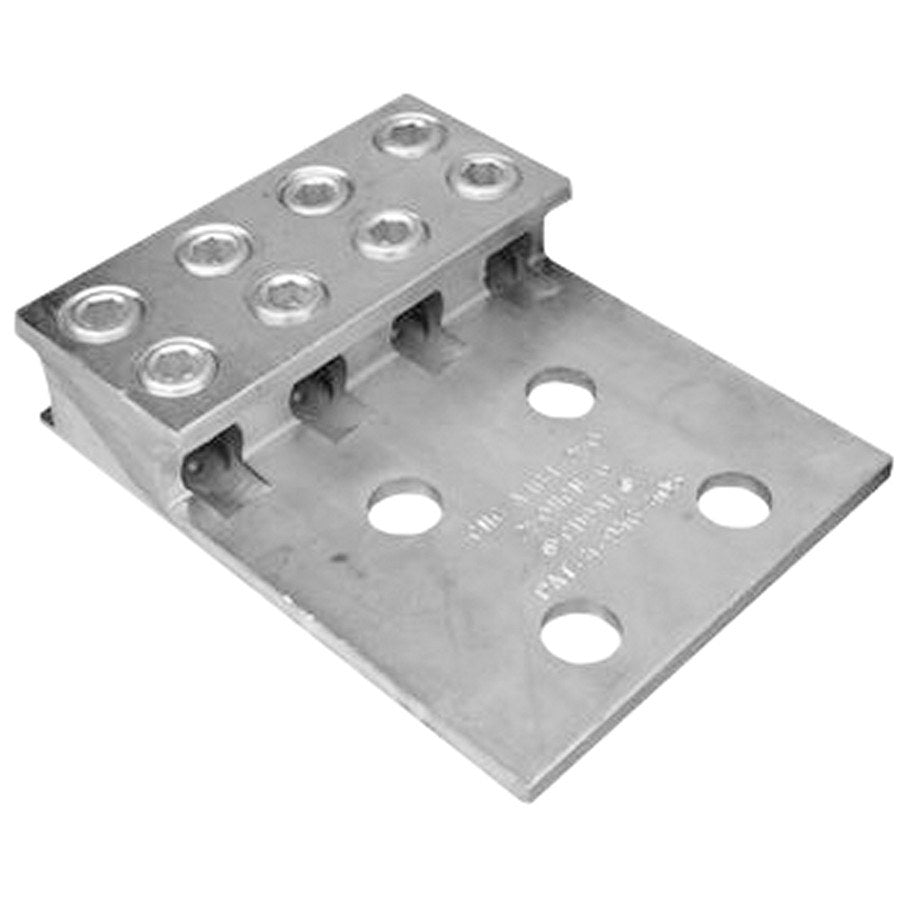

Morris 90967 Aluminum Mechanical Lug, Four-Conductor 4-Hole, 800 MCM - 350 MCM

Morris's 90967 is a dual-rated aluminum mechanical lug that terminates 4 conductors of 800 MCM - 350 MCM on a 4-hole mount. It is electro-tin plated for low contact resistance, accepts copper or aluminum, and is rated 600V at 90°C.

Key Features

• Manufactured from Aluminum, Electro-Tin Plated
• Dual Rated for Both Copper and Aluminum Conductors
• Four Conductor, 4-Hole Mount
• Rated 600V; 194°F (90°C)

Specifications

Applications

Used to terminate 4 800 MCM - 350 MCM copper or aluminum conductors to a 4-hole pad in panelboards, switchgear, transformers, and service equipment.

Installation

Insert each conductor into its barrel and tighten the set screw to the UL486B torque for the wire size; mount to the 4-hole pad.
