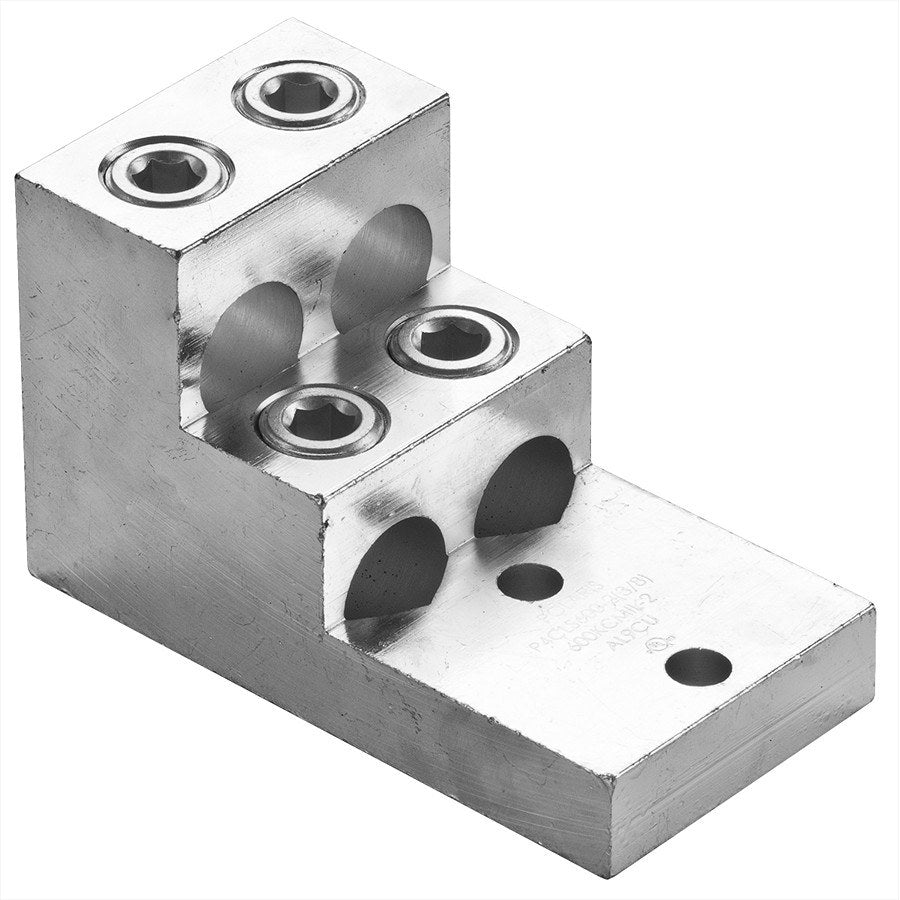

Morris 90924 Aluminum Panelboard Lug, Four-Conductor, 600 MCM - #2 AWG

Morris's 90924 is a dual-rated aluminum panelboard lug that stacks 4 conductors of 600 MCM - #2 AWG (quad stack). It is electro-tin plated for low contact resistance, accepts copper or aluminum, and is rated 600V at 90°C.

Key Features

• Manufactured from Aluminum, Electro-Tin Plated
• Dual Rated for Both Copper and Aluminum Conductors
• Four-Conductor Panelboard Stack (Quad Stack)
• Rated 600V; 194°F (90°C)

Specifications

Applications

Used to stack 4 600 MCM - #2 AWG copper or aluminum conductors in panelboards and load centers as a quad stack lug.

Installation

Mount the lug body in the panelboard, insert each conductor into its barrel, and tighten the set screws to the UL486B torque for the wire size.
