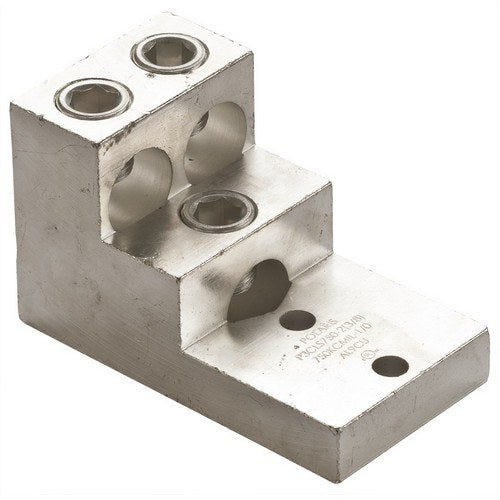

Morris 90920 Aluminum Panelboard Lug, Three-Conductor, 750 MCM - 1/0 AWG
Morris 90920 Aluminum Panelboard Lug, Three-Conductor, 750 MCM - 1/0 AWG
Regular price
$71.84
Regular price
Sale price
$71.84
SKU:90920
Quantity
Couldn't load pickup availability
Morris's 90920 is a dual-rated aluminum panelboard lug that stacks 3 conductors of 750 MCM - 1/0 AWG (triple stack). It is electro-tin plated for low contact resistance, accepts copper or aluminum, and is rated 600V at 90°C.
Key Features
- Manufactured from Aluminum, Electro-Tin Plated
- Dual Rated for Both Copper and Aluminum Conductors
- Three-Conductor Panelboard Stack (Triple Stack)
- Rated 600V; 194°F (90°C)
Specifications
| Brand | Morris |
|---|---|
| Catalog No. | 90920 |
| Type | Aluminum Panelboard Lug |
| Conductors | 3 |
| Configuration | Triple Stack |
| Wire Range (per Barrel) | 750 MCM - 1/0 AWG Str. |
| Stud Hole Size | 0.375" |
| Material | Aluminum, Electro-Tin Plated |
| Conductor Compatibility | Copper / Aluminum (Dual Rated) |
| Voltage | 600V |
| Temperature Rating | 90°C |
Applications
Used to stack 3 750 MCM - 1/0 AWG copper or aluminum conductors in panelboards and load centers as a triple stack lug.
Installation
Mount the lug body in the panelboard, insert each conductor into its barrel, and tighten the set screws to the UL486B torque for the wire size.
